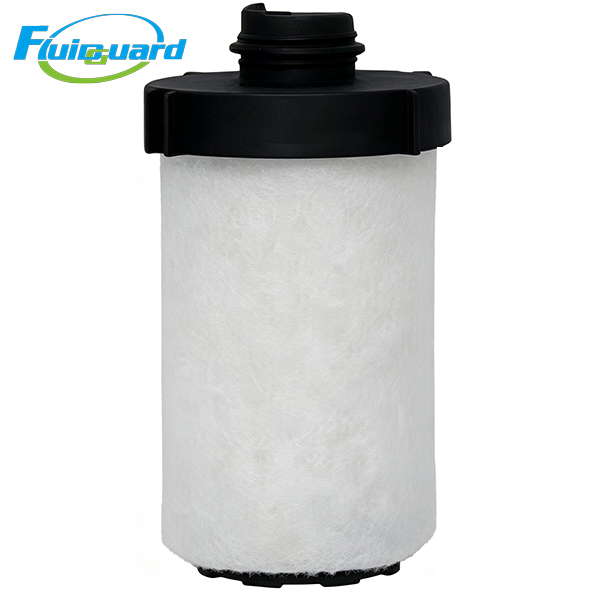

Coalescing Filters

Part No: 85565547

Core Technical Specifications

Absolute Filtration Precision: Solid particles ≥1 μm, liquid oil/water aerosols ≥1 μm

Filter Media Structure: Multi-layer gradient borosilicate microglass composite, outer red hydrophobic/oleophobic drainage foam for anti-re-entrainment

Overall dimension: Length 178mm, outer diameter 76mm

Operating Limits

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: -20°C ~ +65°C

Standard Replacement Interval

4,000 working hours / 12 months under clean industrial conditions; shorten to 2,000–3,000 hours for dusty/high-humidity workshops. Replace when ΔP ≥ 0.06 MPa.

Differential Pressure Replacement Thresholds

Initial pressure drop of new element: ≤0.012 MPa

Mandatory replacement alarm trigger point: ΔP ≥ 0.06 MPa

Sealing & Support Construction

End Caps: Reinforced black PA triple-lug locking head with flow diversion ribs

Seal System: Integrated full-circle NBR nitrile O-ring, zero air bypass, resistant to compressor oil & acidic condensate aging

Inner & Outer Cage: Double-layer perforated 304 stainless steel mesh, anti-collapse under rated airflow

Key Product Advantages

Installed after coarse prefilter, this GP-grade cartridge intercepts bulk condensed water, large oil droplets and 1μm oil mist, greatly reducing liquid contamination load on terminal high-precision filter elements, extending their service life and cutting spare parts cost.

Large dirt & liquid holding capacity for stable long-cycle operation

Thick deep-pleated microglass matrix provides high oil/water storage capacity; outer drainage foam accelerates liquid separation and gravity discharge, slowing pressure rise in humid workshop environments and reducing unplanned downtime from frequent filter replacement.

Heat-stabilized media, zero fiber shedding to avoid pipeline secondary pollution

Heat-cured borosilicate microglass composite combined with stainless steel support mesh prevents glass fiber powder shedding into pipelines, protecting precision spray guns, laser lenses and miniature solenoid valves from blockage failure.

Low permanent differential pressure to reduce air compressor energy consumption

Uniform gradient pore structure minimizes airflow resistance throughout service life; stable low backpressure lowers continuous power consumption of medium screw compressors and reduces long-term electricity cost.

Working Principle

Preliminarily filtered compressed air flows from outside to inside the cartridge:

Residual large water droplets and fine solid impurities are trapped by outer red hydrophobic foam, draining down to filter bowl via gravity;

1μm oil-water micro-aerosols collide and coalesce into large separable liquid droplets while passing through multi-layer gradient microglass media;

Outer anti-re-entrainment foam prevents separated liquid droplets from being re-carried by high-speed airflow;

Collected oil and condensate are automatically discharged by electronic float drain valve;

Medium-clean dry air flows downstream to HE ultrafine filter for further precision polishing.

Application Industries

Medium automotive spray booths, laser marking/cutting equipment, textile printing, packaging automation lines, standalone medium screw compressor stations, plastic injection molding auxiliary air, general pneumatic tools, laboratory analytical instruments, small food processing auxiliary gas supply.
