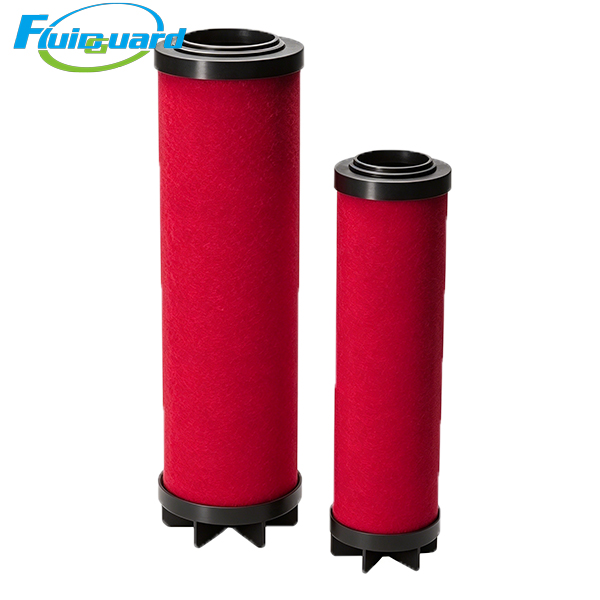

Model : 39474895
Type : Coalescing Filters
Replacement for : 39474895
Part No.39474895 is a special coalescing filter element for screw air compressors. It features high filtration efficiency, good sealing performance and anti-rust solid structure. With standard precise size and easy disassembly, it purifies intake air to protect compressor host, boasting long service
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model No: 39474895
Filtration Grade: 3μm solid particle removal
Dimension & Size Parameters
Outer Diameter: 140 mm
Inner Diameter: 30 mm
Overall Length: 1250 mm
Package Size: 140×140×1250 mm
Net Weight: 2.0 KG
Technical Parameters
Max Working Pressure: 1.6 MPa
Operating Temperature: 5℃ ~ 65℃
Filtration Efficiency: ≥99.9% for particles above 3μm
Filter Medium: Composite glass fiber coalescing material
Sealing Material: Silicone rubber
Service Life: 4000~8000 working hours; replace when pressure difference ≥0.8bar
Main Features
Adopts 3μm high-precision filtration technology, effectively removes solid dust, water mist and tiny oil aerosols from compressed air to ensure clean air quality.
Multi-layer composite hydrophobic and oleophobic filter medium features large dirt holding capacity and stable filtration performance, greatly extending service life.
Equipped with reinforced perforated metal inner and outer support frames, featuring high structural strength, no deformation or collapse under high airflow and high pressure working conditions.
Integrated reinforced plastic end caps with high-quality silicone sealing rings achieve fully tight sealing, effectively avoid air bypass and ensure stable filtering effect.
Low initial pressure drop and large air flow rate, which effectively reduce the energy consumption of air compressor and improve working efficiency.
Excellent chemical compatibility, resistant to conventional compressor oil, weak acid and weak alkali corrosion, suitable for various industrial working environments.
Main Applications
Air purification for pneumatic tools, automatic production lines and pneumatic control systems.
Supporting filtration for high-precision equipment in food & beverage, pharmaceutical, electronics and laser cutting industries.
Effectively intercept particulate contaminants to protect downstream precision instruments, pneumatic valves and pneumatic components.
Widely applicable in machinery manufacturing, chemical industry, textile, printing, packaging and other industrial fields.
