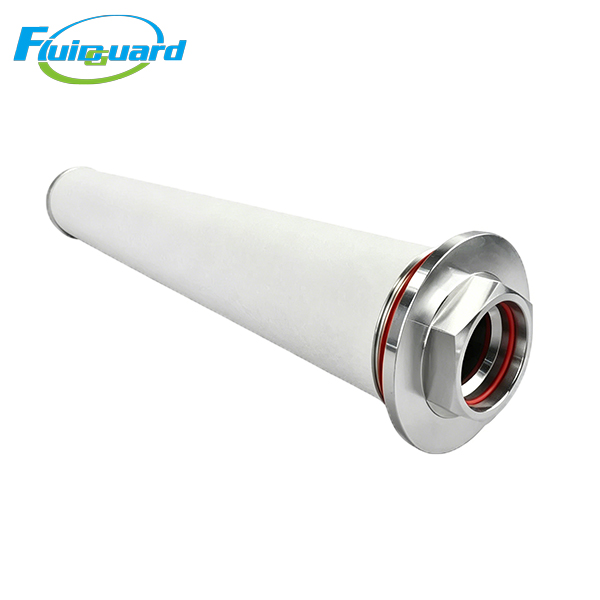

38446399 Coalescing Filter

Model : 38446399

Type : Coalescing Filters

Replacement for : 38446399

38446399 coalescing filter element is core precision consumable for Ingersoll Rand compressed air post-processing system. It adopts multi-layer gradient superfine borosilicate glass fiber composite media and integrated reinforced metal end caps with high-efficiency coalescing layered structure. It e

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part Number: 38446399

Filter Grade: Grade 6 Oil Coalescing Element

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Initial Pressure Drop: ≤0.015MPa

Outlet Residual Oil Content: ≤0.01PPM

Filter Media: Borosilicate Superfine Glass Fiber Composite

Key Product Features

Ultra-high coalescing separation precision, outlet residual oil ≤0.01PPM, meets high clean air standards for electronics, food, pharmaceutical industries;

Gradient glass fiber layered filtration with large dirt holding capacity, hard to block, standard service life 3500–6000 working hours;

Smooth air flow channel with ultra-low initial pressure drop ≤0.015MPa, no sharp pressure rise during long operation to save energy;

High temperature, water and oil corrosion resistance, anti-aging filter media without fiber shedding to avoid air contamination;

Precision metal end cap sealing without air bypass, tight fit during installation, easy to replace with perfect interchangeability;

3-stage interception: pre-filter for dust + coalescing separation for oil mist + rear interception, one-stop compressed air purification to extend service life of downstream equipment.

Application Range

Compatible with Ingersoll Rand precision air filter housings, widely applied in compressed air purification systems with strict air purity requirements: electronics manufacturing, food processing, pharmacy, spraying, precision instruments, laser cutting, chemical industry, power plants and more
