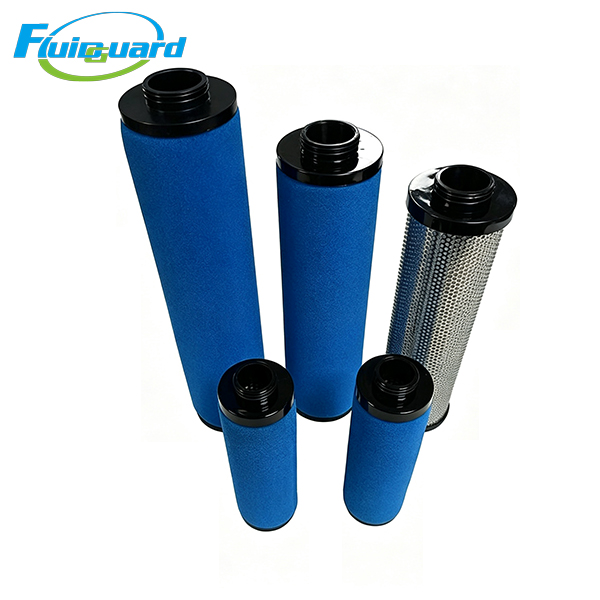

Coalescing Filters

Model: 2901200319

Core Technical Specifications

Filtration Precision: Intercept ≥1μm solid particles, ≥0.01μm liquid oil mist & condensed water aerosol

Outlet Residual Oil Content: ≤0.1 ppm

Dimension & Flow Parameter

Rated air flow: 36 m³/min

Outer Diameter: 90 mm

Total Length: 620 mm

Mounting: Top external thread double FKM fluorine rubber sealing

Continuous Operating Temp: 1.5℃ ~ 66℃

Standard Service Life: Replace after 4,000 working hours or 12 months (whichever comes first)

Differential Pressure Standard: Alarm ΔP＞0.045 MPa; mandatory shutdown replacement ΔP≥0.07 MPa

Initial Differential Pressure: ≤0.015 MPa

Key Product Advantages

Integrated solid-liquid separation for general factory compressed air purification

Installed after PD360 particulate pre-filter, this DDP grade element simultaneously removes pipeline rust, dry dust, submicron oil mist and condensed water droplets that single dust filters cannot eliminate. Outer blue hydrophobic foam prevents secondary liquid re-entrainment, condensed oil & water drain quickly to filter bowl, supplying medium-clean compressed air for most standard pneumatic production lines.

Deep-pleated media balances filtration performance & low pressure drop

Gradient folded glass fiber expands effective filtration area and optimizes internal airflow channels, maintains stable low pressure loss under 24h full-load continuous operation, reduces long-term power consumption of large air compressor units.

Large liquid holding capacity extends maintenance intervals

Thick multi-gradient hydrophobic fiber matrix stores massive condensed oil and water, not easy to saturate in medium-humidity workshop environments, cuts frequent replacement labor and spare parts procurement cost for central air compressor stations.

Hydrolysis & oil resistant structure avoid secondary pipeline contamination

Working Principle

Dust-free pre-cleaned compressed air from PD particulate filter flows outside-in through multi-layer hydrophobic borosilicate glass fiber media:

Solid particles above 1μm are trapped inside fiber matrix;

Tiny oil & water aerosols collide and aggregate into large liquid droplets;

Application Industries

Large machining workshops, forging plants, textile integrated factories, packaging printing workshops, general automotive repair spray booths, group factory central air compressor stations, construction machinery air supply systems, full-automatic ordinary pneumatic production lines.
