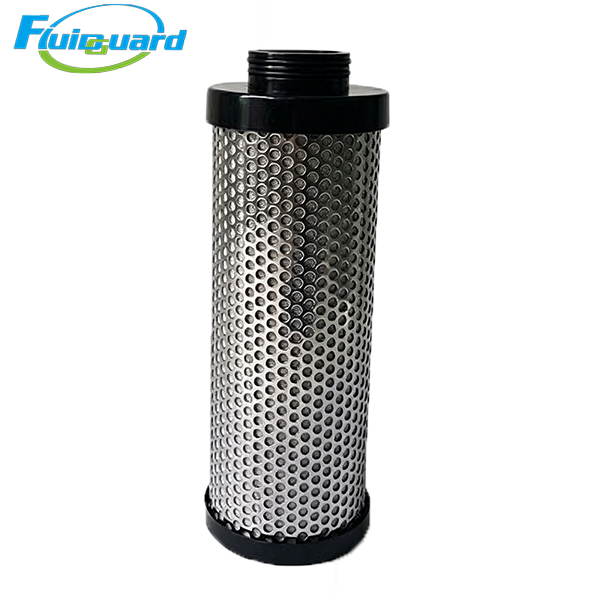

Coalescing Filters

Part No: 2258290141

Function: Adsorb gaseous oil vapour, hydrocarbons and odors, not for liquid oil / water removal

Residual Oil Vapour: 0.003ppm

Max Working Pressure: 16bar

Working Temperature: +10℃ ~ +40℃, short‑term up to +60℃

Dimension: Φ90×320mm

Service Life: Suggested 3000‑4000h, replace upon saturation, non‑regenerable

Filter Media: High‑grade granular activated carbon embedded in non‑woven fiber substrate with carbon‑dust barrier layer

Seal Material: NBR, threaded locking connector, 304 stainless‑steel inner‑outer retainer sleeve to prevent carbon‑dust carry‑over

Main Features

V‑grade final‑stage activated‑carbon element, physically adsorbs gaseous oil vapour, hydrocarbon gas and odour for odour‑free high‑quality compressed‑air supply.

Double‑layer stainless‑steel retainer sleeve secures carbon fill and avoids carbon‑dust contamination to downstream process pipeline.

Optimized flow channel for low pressure drop and low system energy loss.

Coalescing pre‑filter must be installed upstream to remove all liquid oil and condensate. Liquid contamination will rapidly exhaust carbon capacity and cause premature element failure.

Application Industries

Compressed‑air final‑stage purification, food & beverage, pharmacy, breathing‑air supply, laboratory high‑purity air, packaging‑machine air supply, chemical‑process gas, electronics manufacturing

Product Summary

It removes oil vapour and odours and shall be installed downstream of coalescing filter. Delivers odour‑free compressed air for high‑end terminal‑process requirements.
