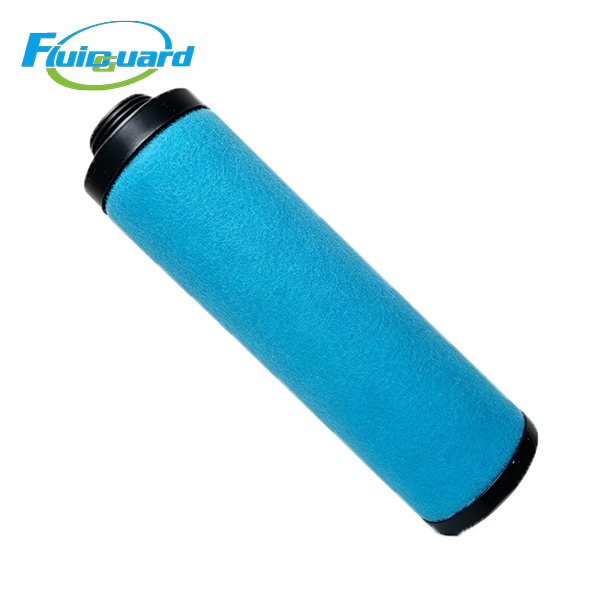

Coalescing Filters

Model: 1624184306

Core Technical Specifications

Filtration Grade: DDp General Coalescing Grade

Filtration Precision: Solid particles ≥0.01 μm, liquid oil & water aerosol capture

Residual Oil Content of Outlet Air: ≤0.1 ppm

Filtration Efficiency: 99.99% for 0.01μm aerosols

Continuous Operating Temperature: 1.5℃ ~ 66℃

Standard Service Life: 4,000 operating hours; mandatory replacement once differential pressure exceeds 0.08 MPa

Initial Differential Pressure: ≤0.015 MPa

Key Product Advantages

High-efficiency coalescence removes oil, water and fine dust

Multi-density gradient glass fiber traps micro oil mist, water vapor and solid particulates from compressed air. Captured liquid drains down to filter housing drain port, greatly improving downstream air cleanliness and protecting pneumatic equipment.

Ultra-low initial differential pressure for energy saving

Uniform deep-pleated large filtration area optimizes airflow passages. Stable low pressure drop under 24/7 full-load operation, effectively cutting compressor power consumption and operation cost.

Strong liquid holding capacity for long maintenance cycles

Thick hydrophobic fiber matrix stores massive condensed oil & water, resists rapid clogging under high humidity workshop conditions, extends filter replacement intervals.

Reinforced anti-corrosion & stable construction

Acid-resistant PP support cage and fluorine rubber sealing rings endure long-term compressed air with oil & moisture. Prevent media deformation, fiber shedding and secondary air contamination.

Working Principle

Compressed air carrying oil mist, water droplets and fine dust flows from outside to inside through multi-layer glass fiber media. Micro oil & water aerosols collide, agglomerate into large liquid droplets on fiber surface, then drip down to the bottom drain port by gravity. Clean dry compressed air flows out to laser cutting, spraying, pharmaceutical and food production equipment.

Application Industries

widely applied in:

Automotive electrostatic spraying, laser cutting equipment, pharmaceutical cleanrooms, food sterile packaging, electronic component assembly, machining workshops, textile mills, centralized factory compressed air stations.
