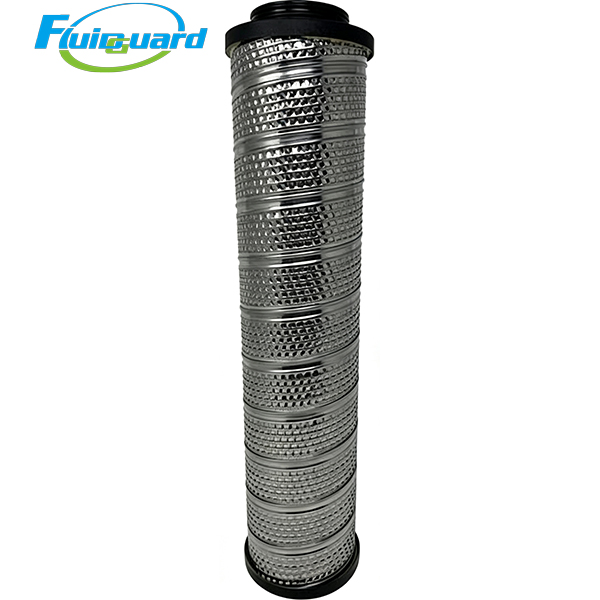

1624183202 Coalescing Filter

Model : 1624183202

Type : Coalescing Filters

Replacement for : 1624183202

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 1624183202

Core Technical Specifications

Filtration Precision: Captures solid particles ≥0.01μm, liquid oil & water aerosols ≥0.01μm

Filtration Efficiency: 99.999% removal efficiency for 0.01μm liquid aerosols

Filter Media: Multi-layer gradient hydrophobic borosilicate micro glass fiber composite, outer red oleophobic anti-re-entrainment foam sleeve with full anti-static coating

Flow & Installation Parameters

Mounting Method: Top threaded bayonet twist-lock plug-in quick fit

Operating Limits

Continuous Operating Temperature: 2°C ~ 66°C

Standard Replacement Cycle: Replace after 4,000 operating hours or 12 months, whichever comes first; extendable to 8,000 hours under low-contamination operating conditions

Differential Pressure Service Thresholds

Initial Differential Pressure: ≤0.016 MPa

Key Product Advantages

Ultimate Submicron Oil Mist Polishing for High-End Critical Manufacturing

Installed downstream of 1624183201 DD medium coalescing element, this red QD grade cartridge intercepts invisible trace 0.01μm ultra-fine oil and water aerosols that DD media cannot fully separate. The outer red hydrophobic foam eliminates secondary liquid re-entrainment; coalesced oil and moisture drain rapidly to the filter bowl, delivering ultra-low residual oil compressed air for strict high-standard production processes. Silicon-free variants are optional for automotive topcoat painting lines to avoid paint surface speck defects.

Deep-Pleated Low-DP Media for Energy Saving

Optimized deep-fold gradient micro glass fiber maximizes effective filtration area, maintaining ultra-stable low pressure drop under 24/7 full-load continuous operation, drastically cutting long-term power consumption of medium & large central air compressor units.

Extra-Large Liquid Holding Capacity Extends Maintenance Intervals

Thick multi-gradient hydrophobic fiber matrix provides massive oil & water storage volume, resisting rapid saturation under high-humidity, high-oil workshop environments and reducing frequent replacement labor and spare parts procurement costs.

Hydrolysis & Abrasion Resistant Fiber-Free Construction

Oleophobic borosilicate micro glass fiber paired with stainless steel support mesh prevents fiber shedding under long-term humid compressed air operation, eliminating secondary pipeline contamination to downstream precision equipment and finished products.

Working Principle

Pre-cleaned compressed air from DD medium coalescer flows outside-in through the filter cartridge:

Trace micro oil & water aerosols collide and coalesce into large liquid droplets across multi-layer gradient borosilicate micro glass fiber media;

Outer red anti-re-entrainment foam sleeve stops coalesced liquid droplets from being re-carried by high-speed airflow;

Condensed oil and water drain down to the filter bowl by gravity;

Ultra-dry, ultra-low-oil compressed air is delivered to downstream activated carbon filter or ultra-precision production equipment.

Application Industries

Automotive high-gloss electrostatic painting workshops, multi-line large laser cutting equipment, pharmaceutical sterile cleanrooms, food large-batch aseptic filling & packaging, PCB & semiconductor chip assembly, laboratory precision analytical instruments, medical breathing air pretreatment, medium & large factory centralized air compressor stations, solvent spraying production lines, full-automatic ultra-precision pneumatic automation production lines.
