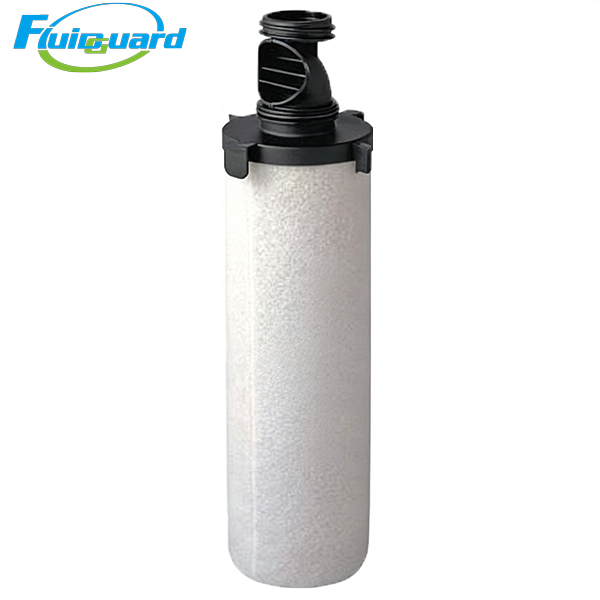

Coalescing Filters

Part No: 055AA

Filter Medium: Multi‑layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤0.01 ppm

Service life: 4000‑6000 working hours

Max operating temperature: 100℃

Rated working pressure: 16 bar

Structure: Plug‑in cartridge with special plastic locating end cap

Sealing material: High‑temperature fluororubber sealing ring

Main Features

Multi‑gradient deep‑bed folded glass‑fiber media, outstanding removal of sub‑micron oil aerosol, liquid water and fine solid particles from compressed air. Outer hydrophobic foam prevents secondary liquid re‑entrainment.

Reinforced perforated inner & outer support cage, resist deformation under continuous high‑speed airflow impact.

Rigid integral end‑cap potting sealing construction, reliable sealing performance to avoid air bypass and prevent filtration efficiency degradation.

Low initial pressure drop, effectively reduce running energy consumption of compressed‑air post‑processing system.

Optimized pleat layout, high liquid‑holding capacity, stable long‑term filtering performance, compatible with various compressor lubricants.

Application Industry

Original interchangeable maintenance spare parts for industrial compressed‑air pipeline filtration system. Widely used in precision machining, automotive spray painting, electronics manufacturing, food processing, pharmaceutical production, medical instruments and other sectors requiring ultra‑high‑purity compressed airParker NA.

Brief Summary

It removes fine oil aerosols, free moisture and solid contaminants from compressed air, protects downstream pneumatic equipment and guarantees ultra‑clean compressed‑air quality.
