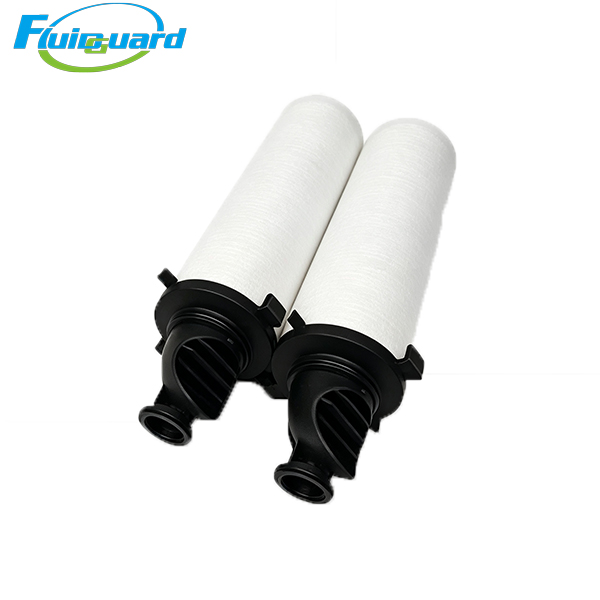

Coalescing Filters

Part No: 040AO

Type: Compressed‑air general‑purpose coalescing filter element

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 1 μm solid particle removal

Residual oil content: ≤1 ppm

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 0.85 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently removes solid particles, oil aerosols and liquid water droplets from compressed air.

Optimized deep‑pleated structure provides large filtration area and keeps low pressure drop in long‑time continuous operation.

Integrated flow‑management structure optimizes air flow path and reduces energy consumption.

Reliable polyurethane sealing gaskets realize tight sealing inside filter housing and prevent air bypass contamination.

High dirt‑holding capacity extends service cycle and lowers maintenance cost.

Stable performance complies with ISO 8573‑1 compressed‑air quality standard for heavy‑duty industrial systems.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting, automotive, chemical processing and other industrial sectors.
