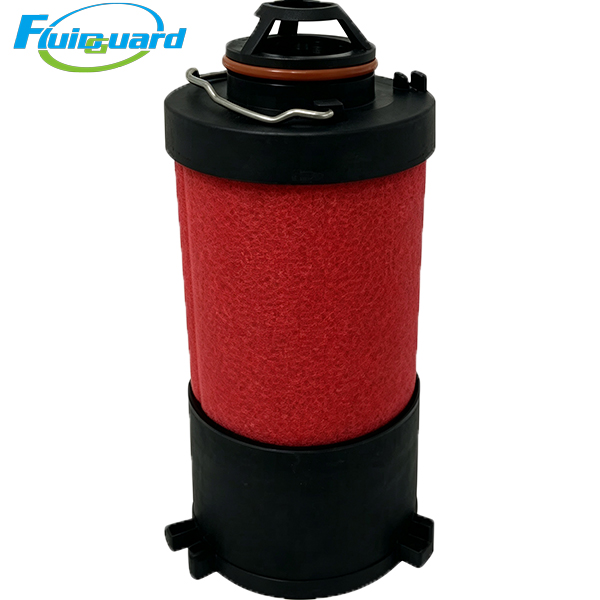

Coalescing Filters

Part No: 02250193‑587

Filtration Rating: 1 μm solid particle removal, residual oil content ≤0.1 mg/m³

Max Working Pressure: 16 bar

Operating Temperature: ‑20℃ ~ +65℃

Dimension: Φ64 mm, Length 430 mm, top‑handle bayonet mounting, Weight 0.74 kg

Filter Media: Gradient multi‑layer borosilicate glass‑fiber media, reinforced plastic support cage, rubber end sealing gaskets

Recommended Service Life: 8000 working hours or 1 year. Replace when pressure difference reaches 0.08 bar.

Main Features

Bayonet quick‑install design with top handle for tool‑free fast replacement.

Gradient multi‑layer glass‑fiber media progressively traps solid dust, condensate and liquid oil mist for primary pre‑filtration.

Reinforced plastic support cage resists airflow impact and prevents media deformation under continuous compressor duty.

Optimized media layout delivers low initial pressure drop to save system energy consumption. Good resistance to condensate and aging.

Integrated rubber end seals eliminate bypass airflow and guarantee real filtration efficiency.

Protects downstream high‑precision elements and extends service life of fine and activated‑carbon filter cartridges.

Application Industries

Screw compressor post‑treatment systems, general manufacturing, spray painting, food processing, pharmacy, electronics, mining and building‑material industries. Performs primary purification by removing particulates and liquid oil mist from compressed‑air flow.

Product Summary

Bayonet quick‑change cartridge provides compressed‑air pre‑purification, intercepts solid contaminants and liquid oil‑water, safeguards downstream fine‑filtration equipment and ensures basic compressed‑air quality.
