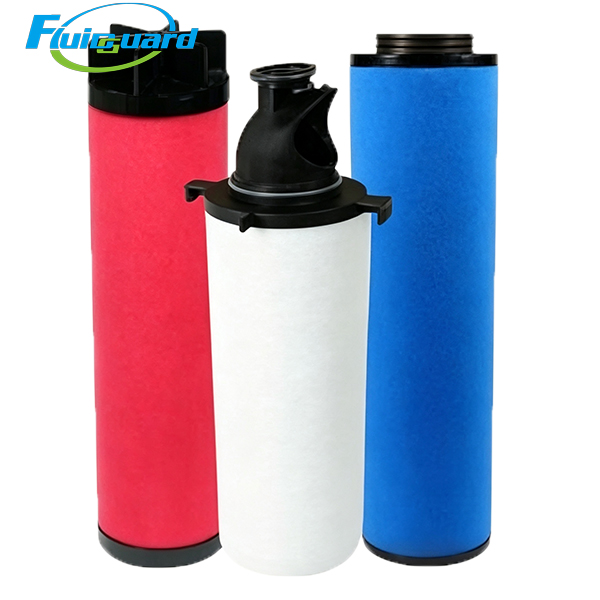

Coalescing Filters

Model: 02250193-583

Core Technical Specifications

Filtration Grade: Primary Particulate Pre-Filter Grade

Filtration Precision: Intercept all solid particles ≥1 μm, pipeline rust, dry dust, scale and metal debris

Particle Filtration Efficiency: 99.99% removal efficiency for 1μm solid contaminants

Filter Media: Multi-layer gradient composite depth fiber, high dust holding capacity, anti-static

Max Working Pressure: 16 bar (232 PSIG)

Continuous Operating Temperature: 1.5℃ ~ 66℃

Standard Service Life: 4,000 operating hours; mandatory replacement once differential pressure exceeds 0.08 MPa

Initial Differential Pressure: ≤0.012 MPa

Key Product Advantages

Heavy-duty pre-filtration protects downstream filter stages

Thick multi-layer depth fiber traps most coarse solid pollutants in advance, drastically reduces dust load on coalescing filter (562) and carbon filter (593), extends service life of high-cost rear-stage elements and cuts maintenance expense.

Ultra-low initial pressure drop for energy saving

Uniform deep-pleated large filtration area optimizes internal airflow passages. Stable low pressure loss under 24/7 full-load continuous operation, effectively lowering compressor power consumption and overall operation cost.

Super large dust holding capacity to prolong maintenance cycles

High-capacity gradient fiber matrix stores massive solid particulate pollutants, resists rapid clogging in dusty factory environments and lengthens filter replacement intervals.

Reinforced anti-corrosion stable construction

Acid-resistant PP support cage and fluorine rubber sealing rings adapt to long-term compressed air mixed with tiny oil mist and moisture. Prevent media deformation, fiber shedding and secondary air contamination.

Working Principle

Contaminated compressed air carrying dry dust, rust chips and coarse solid impurities flows from outside to inside through multi-layer composite fiber media. All solid particulates above 1μm are fully trapped and stored inside the thick fiber matrix. Pre-cleaned compressed air flows into the next coalescing filter for oil & water removal before being delivered to production equipment.

Application Industries

widely applied in:

Automotive electrostatic spraying, laser cutting equipment, pharmaceutical cleanrooms, food sterile packaging, electronic component assembly, machining workshops, textile mills, centralized factory compressed air stations, mining & construction machinery air supply systems.
