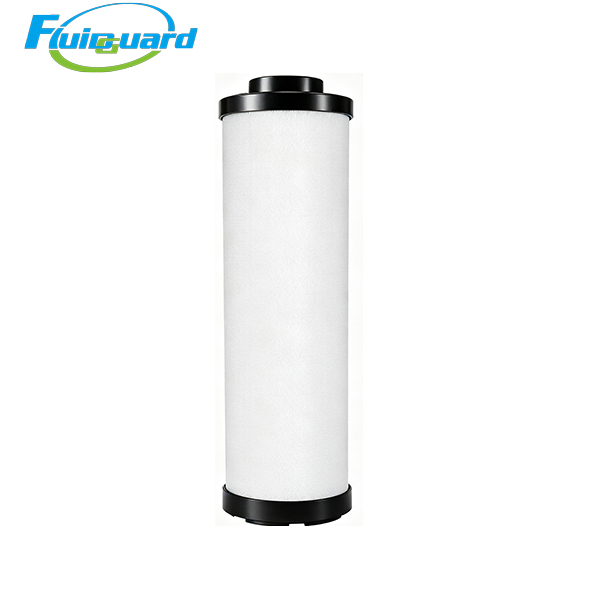

Coalescing Filters

Part No: 02250193-582

Core Technical Specifications

Multi-layer gradient borosilicate microglass composite media, outer red hydrophobic & oleophobic PU drainage foam, extra deep pleated design for enlarged dirt holding capacity and sustained low differential pressure, built-in anti-re-entrainment backflow barrier to prevent liquid oil re-carried by high-speed airflow.

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: 1.5℃ ~ 80℃

Initial pressure drop of brand-new element: ≤0.013 MPa

Mandatory replacement alarm threshold: ΔP ≥ 0.07 MPa

End Caps: Reinforced black PA polymer external bayonet quick-lock connector with uniform flow diversion ribs

Seal System: Integrated full-circle red NBR nitrile rubber O-ring, zero air bypass, resistant to aging caused by high-temperature compressor oil and acidic condensate

Inner & Outer Support Cage: Single-layer perforated 304 stainless steel mesh, lightweight anti-collapse reinforcement for stable long-term medium airflow

Key Product Advantages

Third-stage high-precision polishing protection drastically extends service life of downstream activated carbon filter

Installed after GR10 medium coalescing filter, this H-grade superfine element captures invisible trace submicron oil mist and micro water droplets that medium filters cannot separate. It drastically reduces liquid contamination load on terminal activated carbon elements, extends carbon service cycle and lowers overall factory spare parts expenditure.

Large dirt & liquid holding capacity ensures stable low differential pressure during long heavy-duty continuous production

Deep-pleated gradient microglass matrix stores abundant oil, condensate and solid dust contaminants within compact dimensions. Outer red drainage foam accelerates liquid gravity backflow, slowing pressure rise in medium-flow production air systems and reducing unplanned downtime caused by frequent filter replacements.

High-temperature stabilized media eliminates fiber shedding and secondary pipeline contamination

Heat-cured borosilicate microglass composite paired with stainless steel support mesh stops glass fiber powder from shedding into medium-bore air piping, protecting medium spray booth manifolds, standard laser optical lenses and miniature proportional solenoid valves from severe clogging failures.

Energy-saving low differential pressure design reduces power consumption of medium screw air compressors

Uniform wide-gradient pore layout maintains ultra-low airflow resistance under full rated flow throughout the entire service life. Stable low backpressure reduces continuous running load of medium screw compressors and significantly cuts long-term workshop electricity operating costs.
