Model : SA7197
Type : Air Filters
Replacement for : SA7197

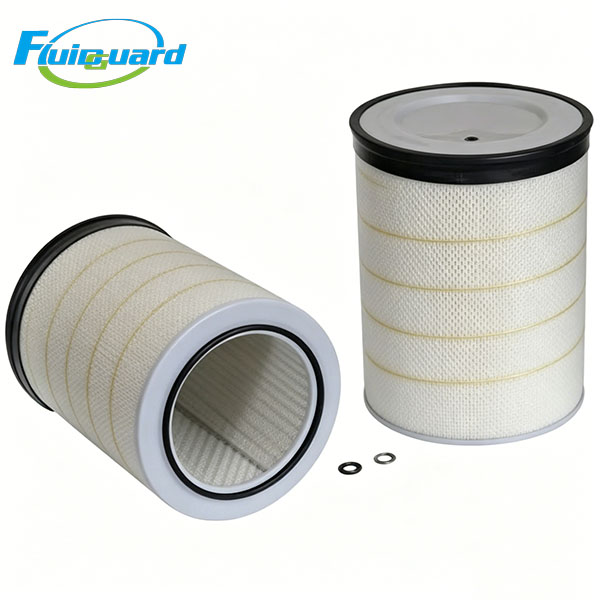

SA7197 is a high‑efficiency primary air filter for industrial screw compressors and heavy‑duty engines. It ensures clean intake air, prevents premature component wear, and extends equipment service life.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: SA7197
Type: Primary Air Filter Element
Specifications
Outer Diameter: 165 mm
Inner Diameter: 95 mm
Height: 280 mm
Filter Media: High‑efficiency cellulose / synthetic blend
Filtration Rating: 5–10 μm
Efficiency: ≥99%
Initial Pressure Drop: ≤2300 Pa
Service Life: 2000–4000 hours
Weight: 1.1 kg
Features
High‑Efficiency Filtration: 5–10 μm rating captures fine dust, protecting rotors and bearings.
Low Pressure Drop: Reduces energy consumption and improves efficiency.
Robust Construction: Reinforced metal end caps pleated media for long life.
SA7197 is a high‑efficiency primary air filter for industrial screw compressors and heavy‑duty engines. It ensures clean intake air, prevents premature component wear, and extends equipment service life.
