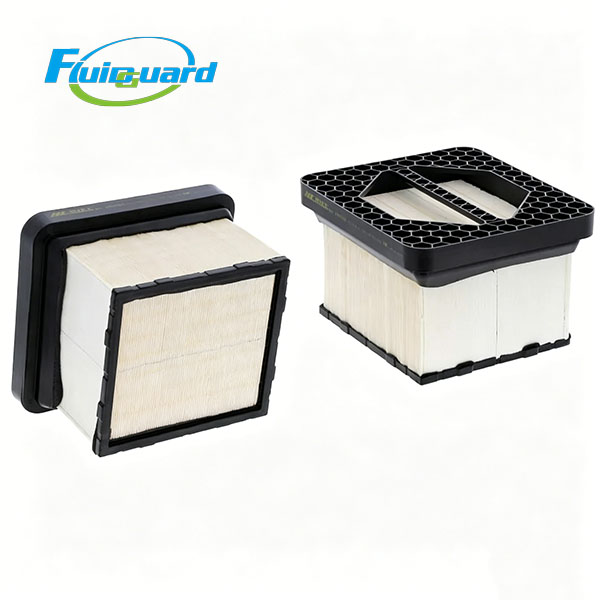

SA190553 Air Filter

Model : SA190553

Type : Air Filters

Replacement for : SA190553

The SA190553 is a high‑performance air intake filter element designed for industrial screw air compressors, vacuum pumps, and blowers. It efficiently removes solid contaminants from inlet air, protecting rotors, bearings, and internal components from wear. The high‑quality pleated media delivers con

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Model: SA190553

Type: Air Intake Filter Element

Weight: 1.98 kg

Specifications

Media: High‑efficiency pleated cellulose / synthetic fiber

Filtration Precision: ~5–10 μm

Filtration Efficiency: 99.8%

Outer Diameter: 220 mm

Inner Diameter: 120 mm

Height: 350 mm

Structure: Radial pleats, rigid inner plastic support

Seal: Rubber end caps, airtight fit

Max Working Temp: −20 °C to +85 °C

Service Life: 2000–2200 hours

Features

High Efficiency: Captures fine dust, pollen, and airborne particles

Large Dust Capacity: Extended service life, reduces maintenance cost

Low Pressure Drop: Optimized pleat design ensures stable airflow & energy saving

Durable Build: Reinforced pleats + sturdy seals for vibration resistance

Easy Installation: Drop‑in replacement, no special tools needed
