Model : JE-88290006-013
Type : Air Filters
Replacement for : JE-88290006-013
It uses high-efficiency pleated cellulose media with metal end caps, delivering high dust holding capacity, low pressure drop, and reliable sealing for industrial environments
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: JE-88290006-013

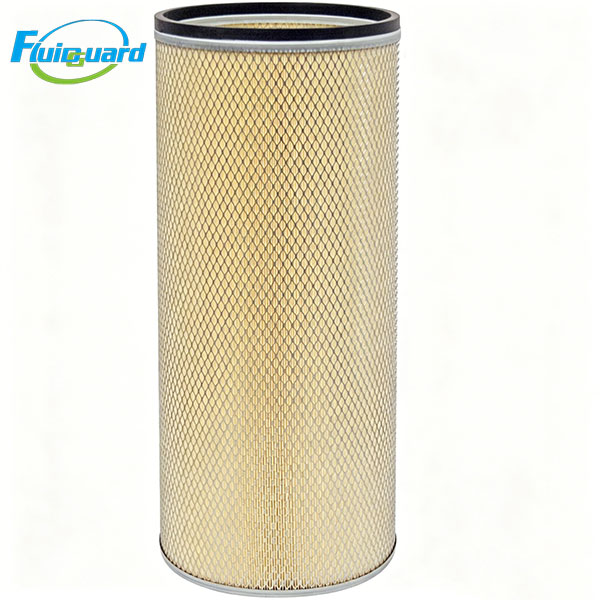

Product Name: Inlet Air Filter Element
Description
It uses high-efficiency pleated cellulose media with metal end caps, delivering high dust holding capacity, low pressure drop, and reliable sealing for industrial environments
Specifications
Filter Media: High-efficiency pleated cellulose
Filtration Accuracy: 5–10 μm
Filtration Efficiency: ≥98%
Outer Diameter: 165 mm
Height: 350 mm
Sealing: Metal end caps with rubber gasket
Structure: Pleated with inner support mesh
Max Pressure Drop: 1.6 MPa
Service Life: 2000–2500 hours
Operating Temperature: -10°C to +80°C
Quality Standard: ISO 9001, OEM equivalent
Function
Removes dust, sand, and solid contaminants from intake air
Protects compressor air end, rotors, and bearings from abrasive wear
Extends service life of oil filter, separator, and lubricant
Maintains optimal airflow, reduces energy consumption
Key Features
High dust capacity extends service intervals, cuts maintenance costs
Low pressure drop saves energy, improves compressor efficiency
Metal-reinforced construction resists vibration and collapse
