Air Filters

Part No: GY015110048

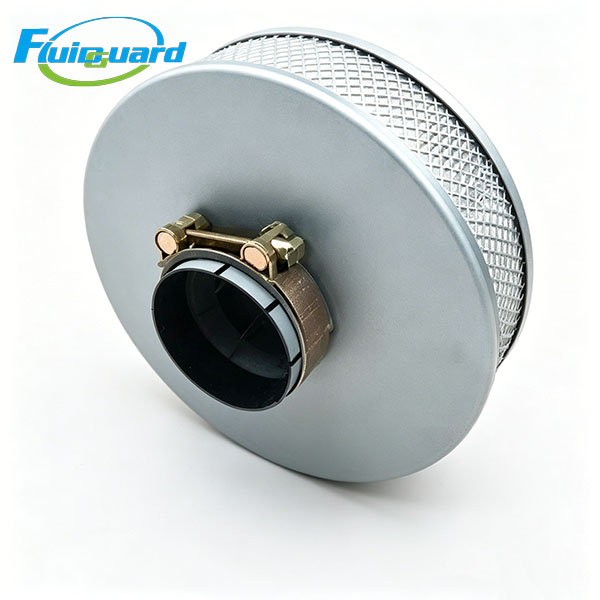

Product Name: Primary Intake Air Filter Element

Description

It adopts high-density pleated cellulose media with integrated rubber or metal end caps and internal support mesh. It features large dust holding capacity and low airflow resistance, delivering stable performance for long-term industrial operation.

Specifications

Filter Media: High-density pleated cellulose

Filtration Accuracy: 5 μm

Filtration Efficiency: ≥99.5%

Outer Diameter:165 mm

Height: 220 mm

Structure: Integrated design with inner support mesh

End Cap: Rubber / Metal seal

Operating Temperature: -10°C to +80°C

Service Life: 2000–3000 hours under normal working conditions

Function

It effectively removes dust, sand and solid contaminants from intake air. Protects compressor air end, rotors and bearings from abrasive wear. Maintains steady airflow, reduces pressure loss and energy consumption, and extends the overall service life of the compressor.

Key Features

High dust holding capacity and low pressure drop, energy efficient

Reliable sealing structure, anti-vibration and air leakage proof

Durable construction for heavy-duty industrial use

Cost-effective alternative to original filters
