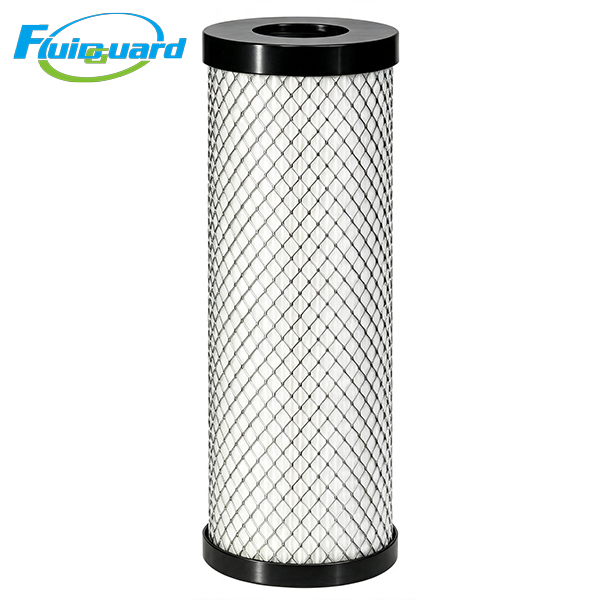

Air Filters

Part No: EFST180

Dimension: OD 140 mm, Height 612 mm

Service life: 4000‑6000 working hours

Max operating temperature: 100℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge

Sealing material: High‑temperature fluororubber sealing ring

Main Features

Multi‑grade filter media optional, efficiently remove solid particles, liquid water, oil aerosol and oil vapor from compressed air.

Reinforced inner & outer metal support cage, anti‑deformation under long‑term high‑speed airflow impact.

Integrated end‑cap potting structure, reliable sealing performance to prevent air bypass and filtration efficiency attenuation.

Low initial pressure drop, reduce energy consumption of compressed air post‑processing system.

Optimized media layout, large dirt‑holding capacity, stable long‑term filtering performance.

Application Industry

Original interchangeable spare parts for compressed air post‑treatment system. Widely used in precision machining, automobile spraying, electronic manufacturing, food processing, pharmaceutical industry, laboratory instruments and other industries requiring high‑purity compressed air.

Brief Summary

It removes solid contaminants, moisture, oil aerosol and oil vapor, protects downstream pneumatic equipment and guarantees stable compressed air quality.
