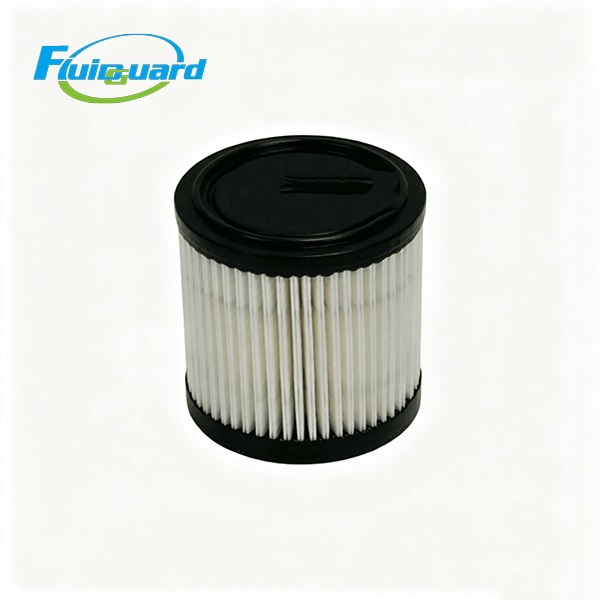

Model : DS-3203
Type : Air Filters
Replacement for : C23115
Height : 210mm
It removes dust, sand, and fine particles from intake air, protecting compressor rotors, bearings, and internal components from abrasive wear. A critical maintenance part for stable, energy-efficient operation.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
It removes dust, sand, and fine particles from intake air, protecting compressor rotors, bearings, and internal components from abrasive wear. A critical maintenance part for stable, energy-efficient operation.
Main Features
Filtration Precision: 5–10 μm, efficiency ≥99.5%
Media: High-density cellulose-polyester blend, high dirt-holding capacity
Structure: Rigid cylindrical design, metal end caps for durability
Sealing: Heavy-duty rubber gasket, prevents unfiltered air bypass
Working Temp: −20 °C to +120 °C
Service Life: 2,000–3,000 hours
Flow Resistance: Low, reduces energy consumption, stable airflow
Dimensions
Outer Diameter: 125mm
Inner Diameter: 80mm
Height: 210mm
Weight: 1.0 kg
