Model : DD17
Type : Air Filters
Replacement for : DD17
Height : 165 mm

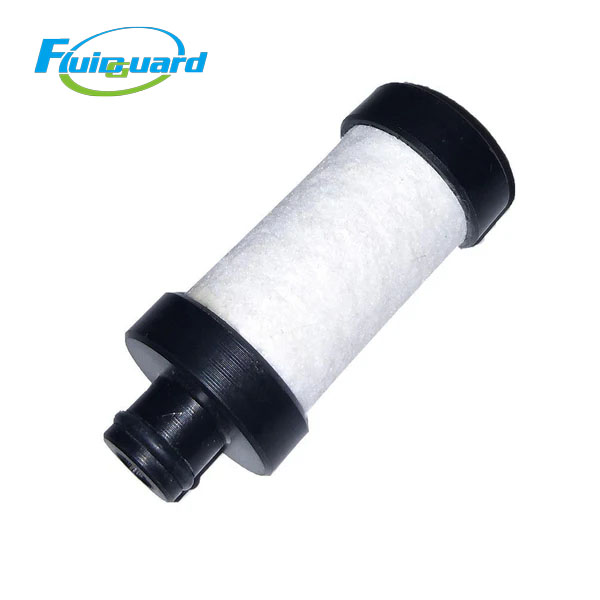

DD17 is high-efficiency compressed air filter element for oil and dust removal, compatible with Atlas Copco systems.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model NO.: DD17
Product Name: Compressed Air Precision Filter Element
Main Features
Filtration Grade: 1 μm particle removal, residual oil ≤0.1 ppm
Media: High-efficiency multi-layer glass fiber, high dust holding capacity
Structure: Reinforced plastic end caps + metal inner frame, tight seal, no leakage
Max Working Temp: 65°C; Service Life: 8000 hours or 1 year
Function
General-purpose inline filter for compressed air systems. Removes solid particles, water condensate, oil aerosols and pipe scale. Protects downstream equipment and ensures clean air for painting, pneumatic tools and general industrial use.
Dimensions
Outer Diameter: 64 mm
Height: 165 mm
Weight: 0.28 kg
