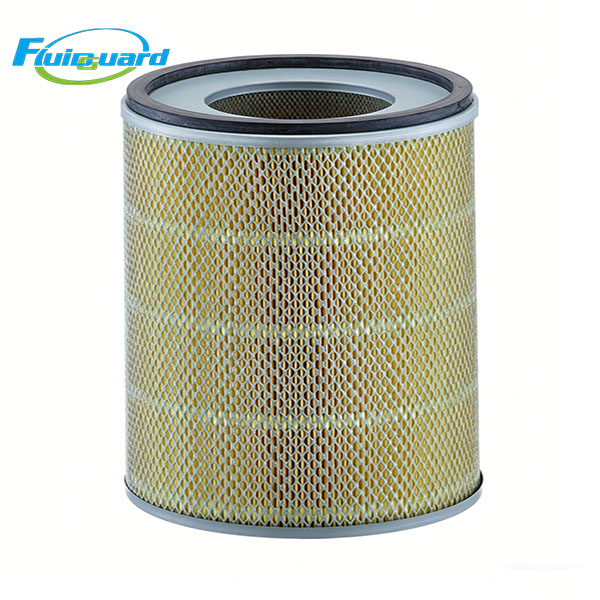

The Air Filter C713​ is a cylindrical pleated filter element designed for air intake systems. It is engineered to remove dust, dirt, and other airborne particulate matter from the incoming air, ensuring that only clean air enters the equipment. This process effectively protects internal components from premature wear, maintains stable operation, and extends the service life of the machinery.

Key Features:

High-Efficiency Filtration:​ Utilizes high-grade pleated filter media to capture fine particles, providing high dust-holding capacity and reliable filtration performance.

Durable Construction:​ Features sturdy end caps and high-quality sealing materials to prevent air bypass and ensure structural integrity during continuous operation.

Optimized Airflow:​ Designed with a precision pleat structure to maintain low pressure drop, ensuring sufficient air volume while reducing energy consumption.

Direct Fit:​ Manufactured to precise dimensions for easy installation and direct replacement without modification.

Technical Specifications (Typical):

Part Number:​C713

Type:​ Cylindrical Air Intake Filter Element

Outer Diameter (OD):​ 65 mm

Inner Diameter (Top ID):​ 38 mm

Inner Diameter (Bottom ID):​ 10 mm

Height (H):​123 mm

Filtration Rating:​ 5–10 μm (typical)

Application:​ Suitable for various industrial air compressors, vacuum pumps, and pneumatic systems requiring clean intake air.
