Model : C23115
Type : Air Filters
Replacement for : C23115
Height : 128–130 mm

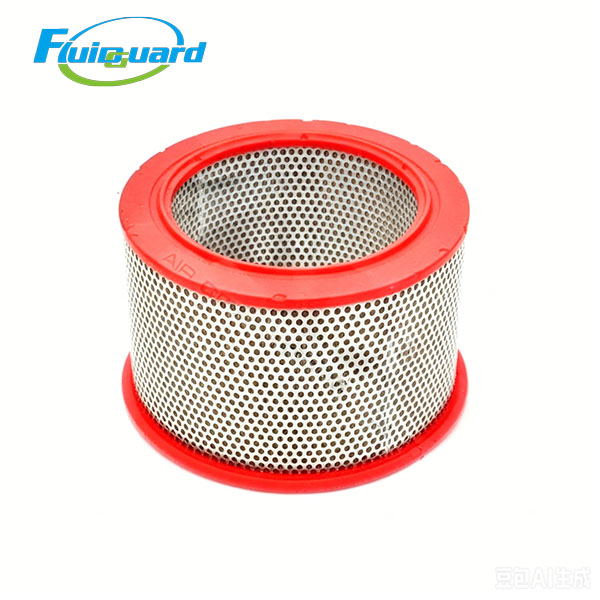

C23115 is a high‑efficiency round air filter element for industrial screw air compressors, dryers and vacuum pumps. It adopts imported high‑density wood pulp filter paper to capture dust and fine particles effectively, protecting compressor rotors, bearings and precision parts from wear. Low pressur
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Main Content:
The assembly consists of pleated high-efficiency filtration media, a metal or plastic internal support frame/screen, and polyurethane sealing end caps.
Key Features:
Cylindrical cartridge design providing a large filtration area with low pressure drop. High filtration efficiency at a rating of approximately 5–10 microns . Effectively traps dust, sand, pollen, soot, and airborne contaminants. High dirt-holding capacity and robust pleat stability ensure functional reliability. Designed for a service life of approximately 2000 hours.
It is installed at the air inlet to filter ambient air drawn into the compressor, preventing abrasive particles from entering the compression chamber, thereby protecting rotors, oil filters, and separators.
Dimensions / Size:
Height: 128–130 mm
