Air Filters

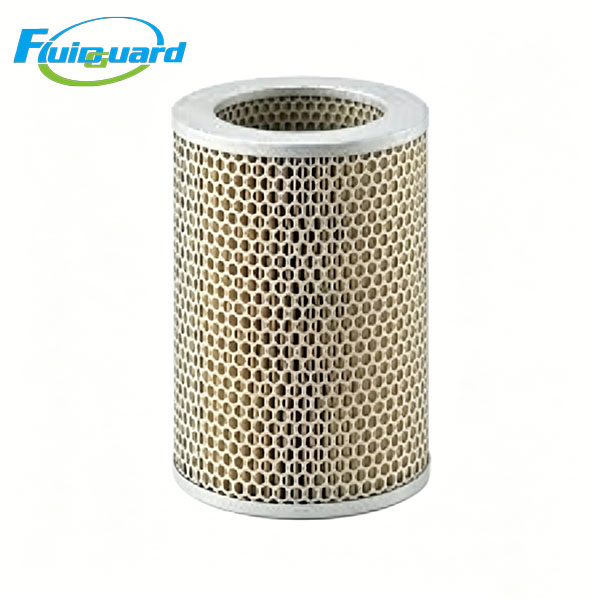

Model: C18120

 Type: Intake Air Filter Element for Screw Air Compressor

Specifications

Outer Diameter: 180 mm

Inner Diameter: 102 mm

Height: 365 mm

Filter Media: High-grade HV cellulose filter paper

Filtration Rating: 5~10 μm

Filtration Efficiency: ≥98.5%

Standard Service Life: 2000~3000 working hours

Features

Integrated rubber end cap for full sealing to avoid unfiltered air bypass.

Large filter area with high dust holding capacity and low intake resistance for power saving.

Effectively protects compressor rotor, oil filter and oil separator core.

Description

C18120 is  air filter to purify inlet air, stabilize compressor output and extend service life of internal wearing parts.
