Air Filters

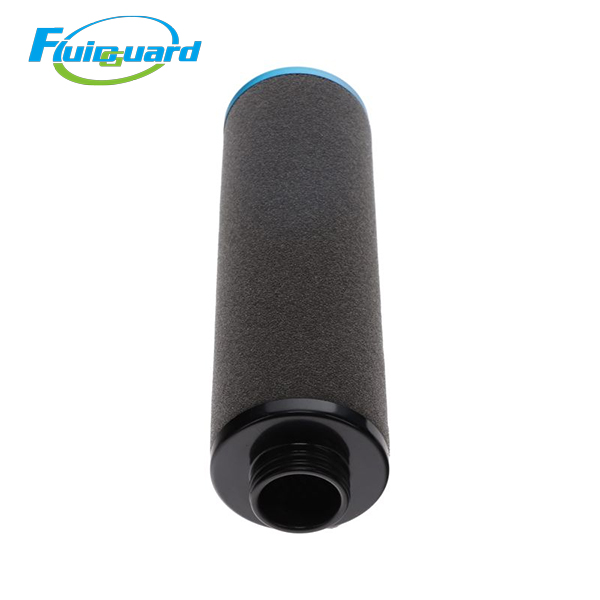

Part Number: 9.4864.0

Matching Filter Housing: FE28 inline compressed air filter vessel

Filter Grade: G-Class terminal oil vapor & odor removal filter

Adsorption & Filtration Performance:

Absolute solid particle retention ≥0.01 μm

Residual hydrocarbon oil vapor ≤0.003 ppm

Standard Service Life: 4,000 working hours; shorten to 2,000 hours under heavy oil mist, continuous spray booth and high-temperature environments

Max Operating Pressure: 1.6 MPa

Safe Continuous Operating Temperature: 2℃ ~ 45℃

Initial Pressure Drop: ≤0.015 MPa

Replacement Alarm Differential Pressure: ≥0.06 MPa

Physical Dimensions: OD 60 mm, ID 35 mm, Height 167 mm, Net Weight 0.20 kg

Application Scenarios

Automotive high-gloss clear coat spraying lines, electronic & semiconductor cleanroom manufacturing, precision medical device auxiliary air supply, food & beverage sterile packaging, optical lens polishing, laboratory high-precision analytical instruments, lithium battery production workshops, cosmetic aseptic filling production

Product Features

Dual-layer composite filtration design: Front microglass barrier intercepts residual liquid oil mist and fine dust to protect internal carbon filling; high-specific-surface-area activated carbon deeply adsorbs trace oil vapor and peculiar odors, producing zero-odor ultra-pure compressed air that meets strict food, medical and electronic industry sanitary standards.

Compact deep-pleated low-resistance layout maintains stable low pressure drop throughout the full service cycle, avoiding excessive continuous energy consumption of medium-flow air compressors.

Rigid integrated black plastic composite end caps + corrosion-resistant plastic inner support mesh, excellent anti-vibration performance; carbon filler and filter media will not shift, sag or collapse under long-term steady medium airflow impact.

Integrated food-grade EPDM rubber sealing ring, outstanding resistance to high temperature and synthetic compressor lubricant oil, completely eliminating pipeline air leakage risks.

Product Description

Conventional E-B/E-E grade coalescing filters can only separate liquid oil aerosols, while this E-G carbon element targets gaseous oil vapor and irritating odors that penetrate liquid filtration stages. It effectively prevents paint film pinholes, workpiece surface yellowing, precision instrument corrosion and finished product odor contamination, fully satisfying strict sterile, food-contact and high-gloss coating production requirements. Upstream multi-stage filtration greatly reduces carbon adsorption load and extends the service life of this terminal carbon element, lowering overall compressed air system maintenance costs.
