Model : 1649810101
Type : Air Filters
Replacement for : 1649810101
Height : 383 mm
It is constructed with high‑efficiency pleated cellulose media and features a PU end cap with rubber seal. Designed for heavy‑duty industrial environments, it delivers low pressure drop, high dust holding capacity, and reliable sealing to protect compressor core components.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: 1649810101

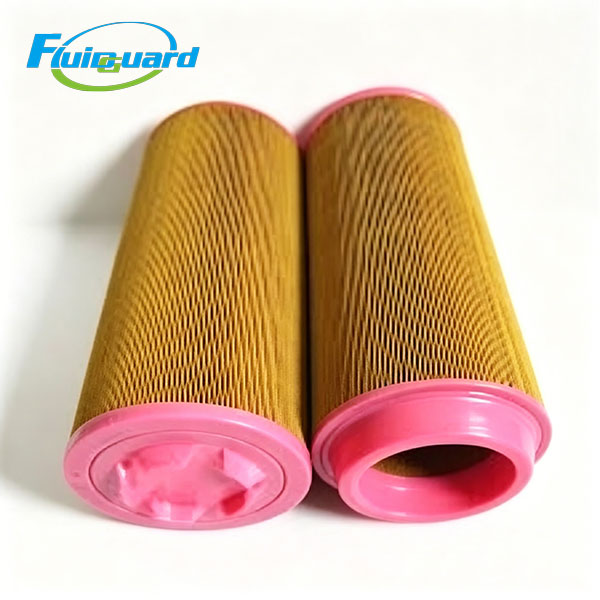

Product Name: Air Filter Element
Specifications
Filter Media: High‑efficiency pleated cellulose
Filtration Accuracy: ≤10 μm
Filtration Efficiency: ≥99.7%
Outer Diameter : 228 mm
Inner Diameter : 116 mm
Height : 383 mm
Structure: PU end cap + rubber seal
Operating Temperature: -10°C to +85°C
Service Life: 2000–2500 hours
Quality Standard: ISO 9001, OEM equivalent
Function
Removes dust, sand, and solid contaminants from intake air. Protects rotors, bearings, and internal parts from abrasion, reduces oil contamination, and maintains stable airflow and energy efficiency.
