Other Filters

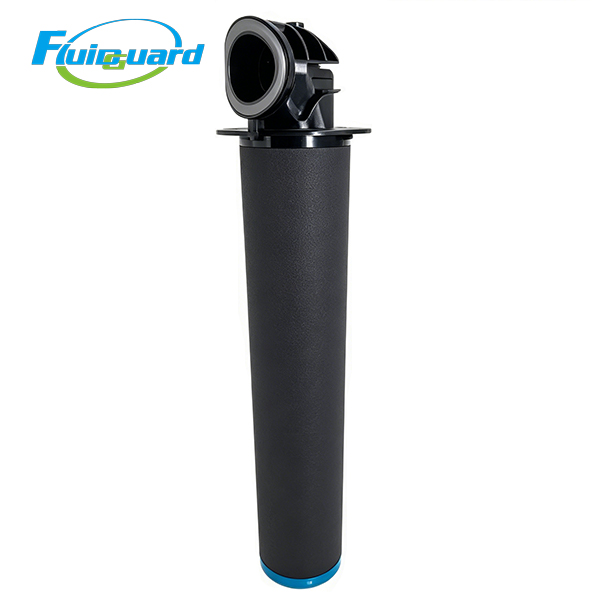

Model No: 2901207939

Filtration Precision: 0.1μm

Max Outlet Residual Oil: ≤0.1 PPM

Max Working Pressure: 1.6 MPa

Max Working Temperature: ≤48.9℃

Standard Service Life: 3500–4000 working hours

Application Scope

widely used in industries requiring medium-clean compressed air:

Auto parts spraying workshops, general machinery processing plants

Textile manufacturing factories, food packaging production lines, chemical factories

Centralized small industrial compressor stations, laser cutting auxiliary air supply

Dust-free electronic semi-finished assembly, common precision pneumatic testing equipment

Product Features

Patented Nautilus 3D drainage layer gathers liquid contaminants and avoids secondary oil re-entrainment into airflow; deep pleated layout provides huge dirt & water holding capacity.

Thickened perforated stainless steel inner support frame with high structural rigidity, stable under working pressure up to 16 bar.

Imported HV borosilicate microfiber, resistant to high temperature and compressor oil corrosion, no fiber shedding to avoid secondary air pollution.

Optimized streamline pleat design maintains ultra-low initial pressure drop, cutting overall power consumption of air compressor station and lowering long-term operation cost.

Double O-ring integrated sealing end cap closely fits filter housing to completely eliminate bypass air leakage.

Push-in quick-install design for easy disassembly and replacement, effectively reducing overall system maintenance cost.
