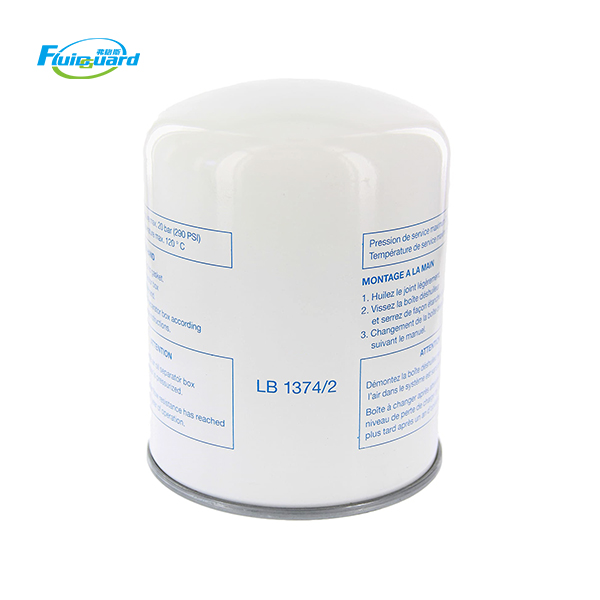

LB1374/2 Air Oil Separator

Model : LB1374/2

Cross Reference:575000105,DF5006,NS000650

Type : Oil Separators Filters

Replacement for : Mann Hummel

Service life : 4000-5000h

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Dimension : φ135*177 (M39*1.5)

LB1374/2 air oil separator is crucial in maintaining the purity of the compressed air and ensuring the smooth operation of the air compressor.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

LB1374/2 air oil separator is crucial in maintaining the purity of the compressed air and ensuring the smooth operation of the air compressor. It can separate oil from the compressed air in the air compressor system. The separator achieves this through a sophisticated filtration system that effectively traps oil particles while allowing clean, dry air to pass through.

One of the key challenges in the air oil separator is minimizing pressure drop while maintaining its high separation efficiency. LB1374/2 air oil separator is designed with optimized flow paths and advanced materials to reduce pressure loss, which translates into lower energy consumption and improved overall system performance.
