Oil Separators Filters

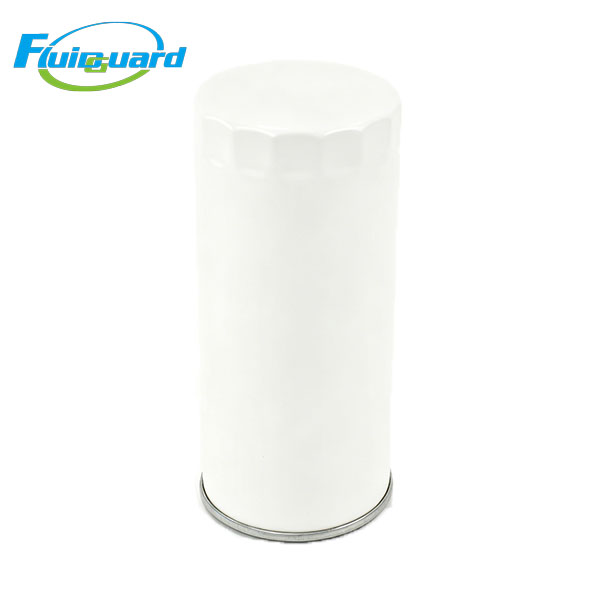

Part No: DF5043

Product Type: Spin‑on integrated air‑oil separator

Residual Oil Content: ≤3 ppm

Max Working Pressure: 16 bar

Operating Temperature: ‑20℃ ~ +120℃

Dimension: Φ114 mm, Length 325 mm, Thread M42×2, Weight 3.0 kg

Filter Media: Multi‑layer composite glass‑fiber coalescing media, pressure‑resistant steel housing, built‑in oil‑return mechanism

Recommended Service Life: 4000 working hours or 1 year. Replace when pressure difference reaches 0.25 bar.

Main Features

Integrated spin‑on design, twist‑in/twist‑out replacement without separator tank disassembly for efficient on‑site maintenance.

High‑efficiency multi‑layer glass‑fiber coalescing media captures fine oil‑mist particles, reduces oil‑carry‑over and compressor lube‑oil consumption.

Built‑in oil‑return guide structure reliably drains separated lube oil back to air‑end and effectively prevents oil‑carry‑over failure.

Low initial pressure drop reduces system energy consumption. Impact‑resistant steel housing fits continuous high‑temperature compressor operating conditions.

Pre‑installed sealing gasket avoids bypass leakage caused by improper installation.

Application Industries

Oil‑injected screw compressor systems, general manufacturing, spray painting, food processing, pharmacy, electronics, mining and building‑material industries. Performs air‑oil separation to deliver clean compressed air for downstream equipment.

Product Summary

DF5043 is universal external spin‑on air‑oil separator compatible with multiple European screw compressors. Easy‑maintenance cartridge achieves high‑efficiency oil‑gas separation, controls residual oil content and protects downstream filters and pneumatic devices.
