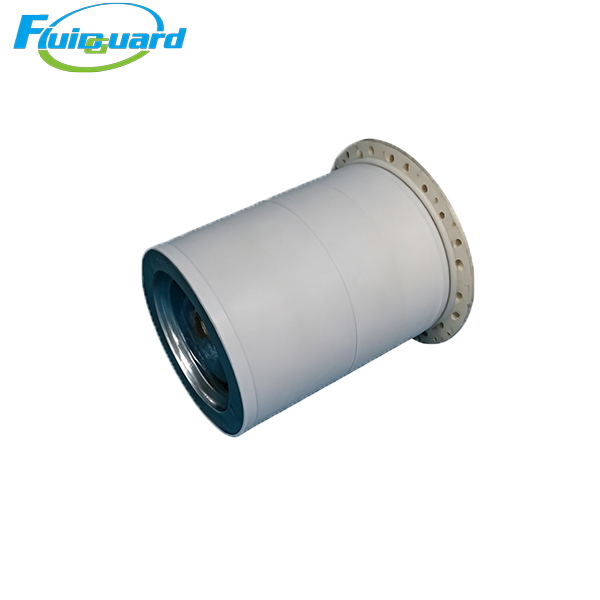

Oil Separators Filters

Part No: 99277998

Filter Media: High‑efficiency imported glass‑fiber composite coalescing material

Residual Oil Content: ≤3ppm under nominal working condition

Max Working Pressure: 16 bar

Working Temperature: ‑20℃ ~ +120℃

Initial Pressure Drop: ≤0.02 MPa

Service Life: 3500‑4000 working hours, subject to actual operating condition

Structure: Flange‑mounted built‑in separator cartridge, equipped with composite flange gasket

Main Features

High‑performance glass‑fiber coalescing media, excellent oil‑mist capturing capacity, low residual oil carry‑over for compressed air.

Optimized pleat layout, stable pressure‑drop throughout the whole service cycle, large dirt‑holding capacity.

Matched composite flange gasket ensures reliable sealing after installation, prevent compressed air bypass leakage.

Reinforced metal end caps and perforated protective mesh, anti‑corrosion, withstand pressure fluctuation and unit vibration.

Application Industry

Widely used in machinery manufacturing, electronics, food, pharmaceutical, packaging and other industrial compressed‑air stations.

Brief Summary

It separates lubricating oil mist from compressed air, reduces oil carry‑over, guarantees outlet air quality, protects downstream pneumatic equipment, ensures stable and safe compressor running.
