Oil Separators Filters

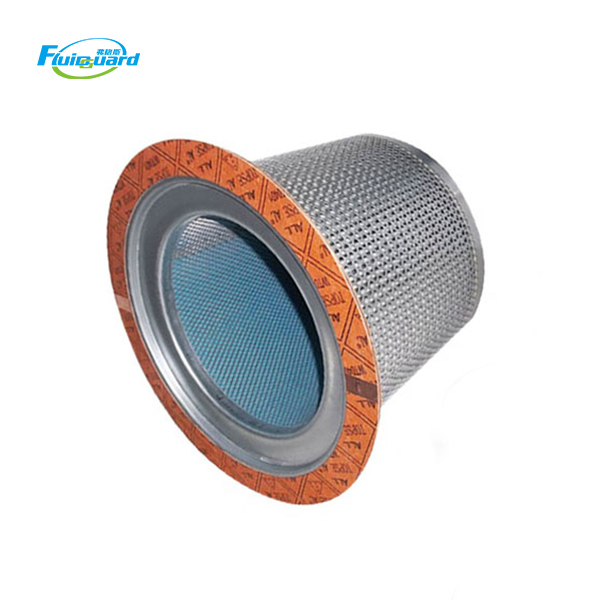

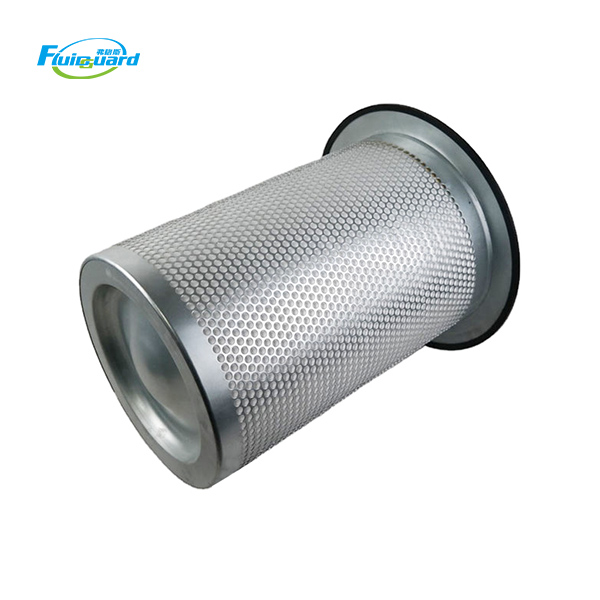

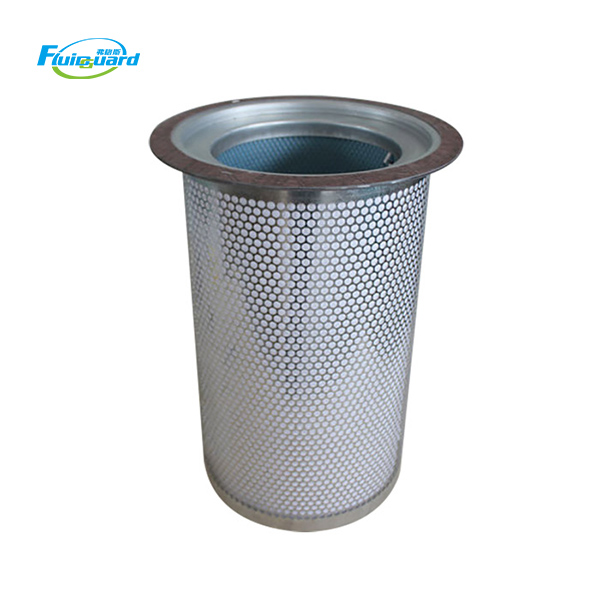

91111004 air compressor air/oil separator element can separate oil from the compressed air stream, ensuring that the output air is clean and free from oil contamination.

The process begins with the compressed air, which contains oil droplets, entering the cooling system. Here, the air undergoes mechanical separation before passing through the air/oil separator element for further filtration. The separator traps and coalesces the oil mist into larger droplets, which then collect at the bottom of the separator and are returned to the compressor's lubrication system via a return oil pipe. This cycle ensures that the compressor expels cleaner, higher-quality compressed air.

91111004 air compressor air/oil separator element has a high filtration efficiency, rated in microns. It is capable of capturing extremely fine oil droplets, ensuring that the oil content in the discharged air is minimal, typically within the range of 3-6 parts per million (ppm).
