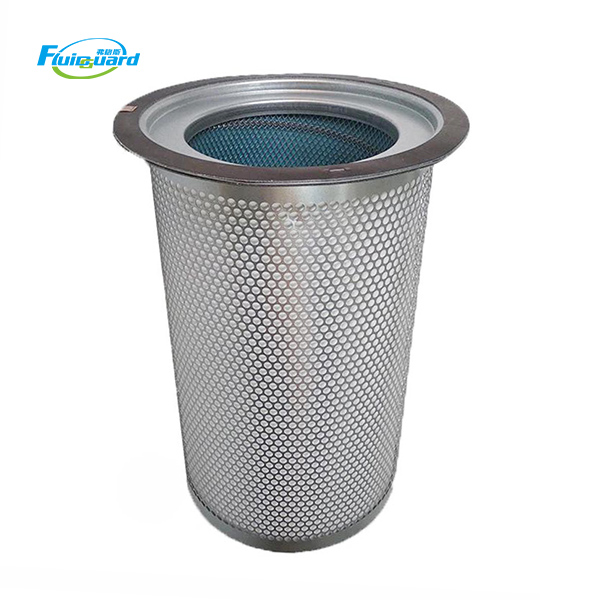

91111-008 Compressor Part Air Oil Separator

Model : 91111-008

Cross Reference:4930653102,DB2167,NS016720

Type : Oil Separators Filters

Replacement for : Fusheng

Service life : 4000-5000h

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

91111-008 compressor part air oil separator is used to ensure that the output compressed air meets certain cleanliness requirements.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

91111-008 compressor part air oil separator is an important part of the air compressor system, mainly used to separate the lubricating oil droplets in the compressed air to ensure that the output compressed air meets certain cleanliness requirements. High-strength fibers and metal skeleton materials are utilized to ensure the durability and structural stability of the air oil separator. Its multi-layer structure design enables to effectively capture and separate oil mist and ensure long-term filtration performance.

91111-008 air oil separator features low pressure drop. While ensuring efficient separation, the design of the air oil separator should minimize the pressure loss when air passes through. This can reduce the energy consumption of the air compressor and improve the operating efficiency of the system.
