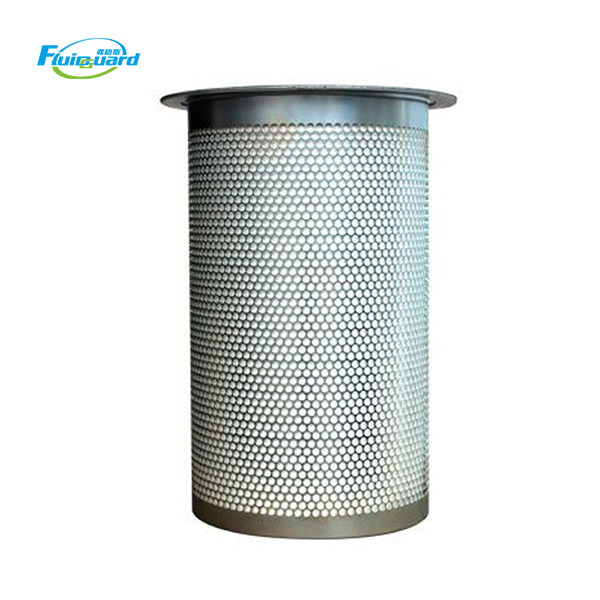

4930553111 Air Oil Separator

Model : 4930553111

Cross Reference:91111007,DB2089

Type : Oil Separators Filters

Replacement for : Mann Hummel

Service life : 4000-5000h

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Dimension : φ355*300*220*500

4930553111 air oil separator has a primary function to separate oil from the compressed air stream.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

4930553111 air oil separator has a primary function to separate oil from the compressed air stream. It achieves this by utilizing a combination of filtration mechanisms that remove oil droplets, ensuring that the discharged air is clean and oil-free. The separator can effectively remove particles as small as 0.1 microns, ensuring that even the finest contaminants are filtered out. Additionally, it has a low pressure drop, minimizing energy losses and maintaining system efficiency.

Features:

- Capable of retaining particles as small as 0.1 microns, ensuring a high level of air purity.

- In addition to oil, the separator also helps to remove moisture from the air, providing double protection against contamination.

- It can operate within a broad temperature range, making it suitable for various environmental conditions.
