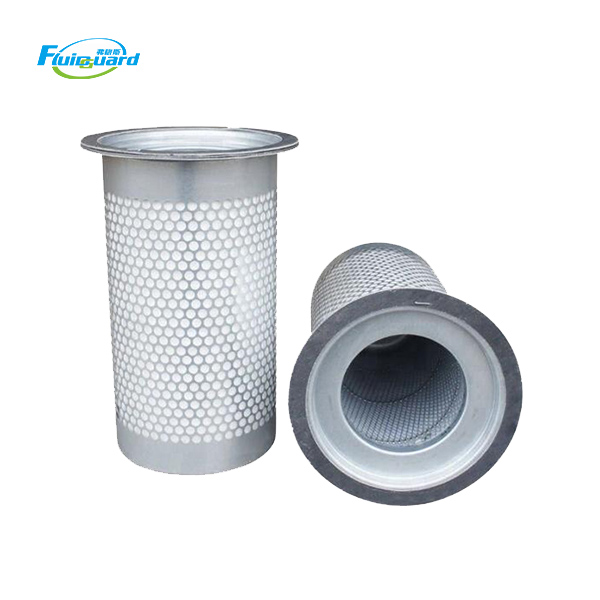

4930253131 Air Oil Separator

Model : 4930253131

Cross Reference:91111005,DB2132

Type : Oil Separators Filters

Replacement for : Mann Hummel

Service life : 4000-5000h

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Dimension : φ200*170*109*305

4930253131 air oil separator efficiently removes oil mist, ensuring that the air supplied to the application is clean and free of oil contaminants.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

The primary role of 4930253131 air oil separator is to separate the lubricating oil from the compressed air that is produced by the compressor. As the air is compressed, it becomes saturated with oil vapor from the air compressor's lubrication system. The separator efficiently removes this oil mist, ensuring that the air supplied to the application is clean and free of oil contaminants. This separation is vital for protecting downstream equipment and maintaining the quality of the end product.

Key features include:

- High-efficiency separation, capable of removing particles down to a micron level.

- Durability and reliability, built to operate continuously over extended periods.

- Eco-friendly operation, reducing the emission of oil into the atmosphere, thereby contributing to environmental protection.
