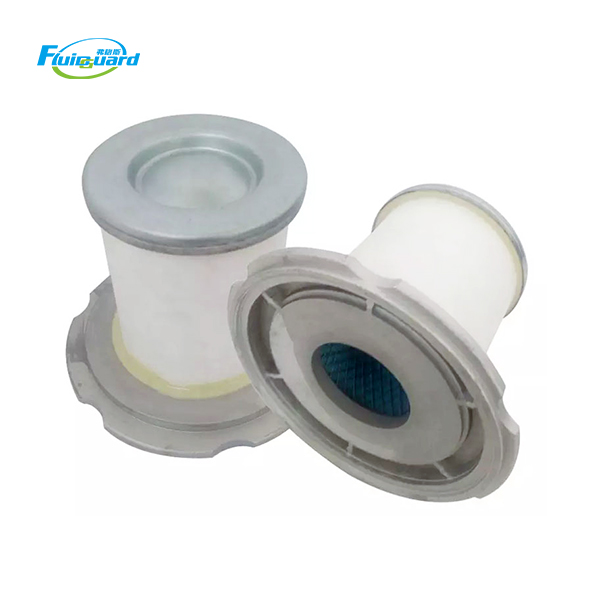

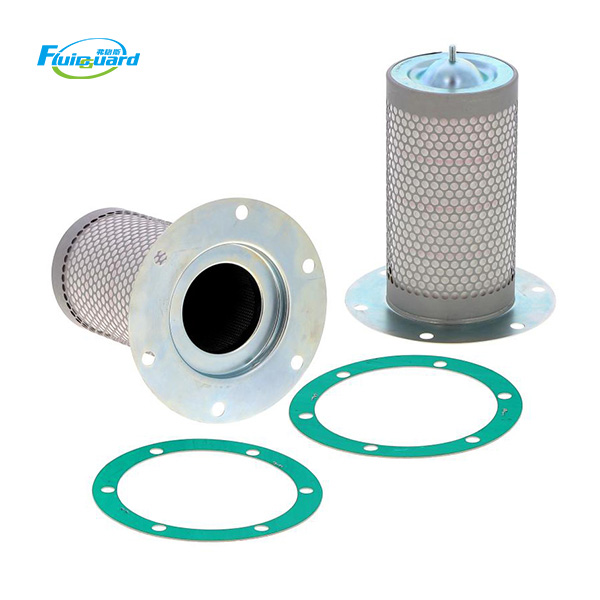

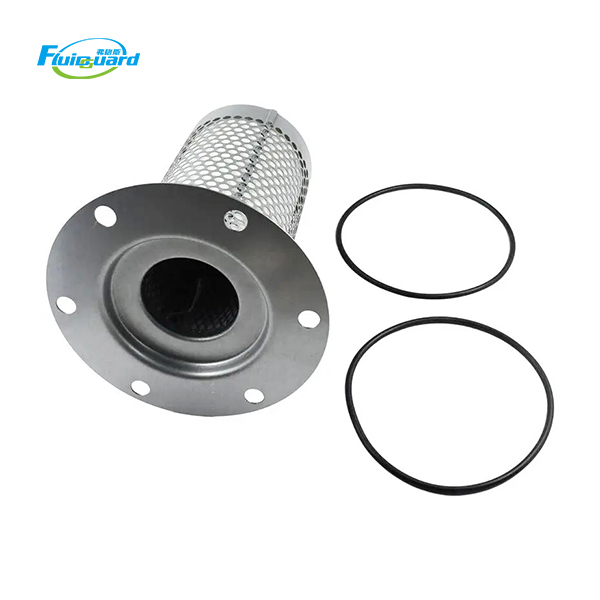

4900356101 Air Compressor Air Oil Separator Element

Model : 4900356101

Cross Reference:1614532900,DA1084

Type : Oil Separators Filters

Replacement for : MANN

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Service life : 4000-6000h

4900356101 air compressor air oil separator element is mainly used to separate the oil mist in the compressed air to ensure that the lubrication system can work properly.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

4900356101 air compressor air oil separator element is mainly used to separate the oil mist in the compressed air to ensure that the lubrication system can work properly. It is made of fine high-efficiency glass fiber filter material, which can effectively intercept and polymerize oil mist in the air. Its The design and material selection enable it to capture very fine oil droplets, ensuring that the oil content of the compressed air is kept at an extremely low level (usually less than 3 ppm).

The bottom of the separator element is usually equipped with a oil return pipe, so that the separated oil can be smoothly returned to the lubrication system, thereby reducing fuel consumption and environmental pollution.
