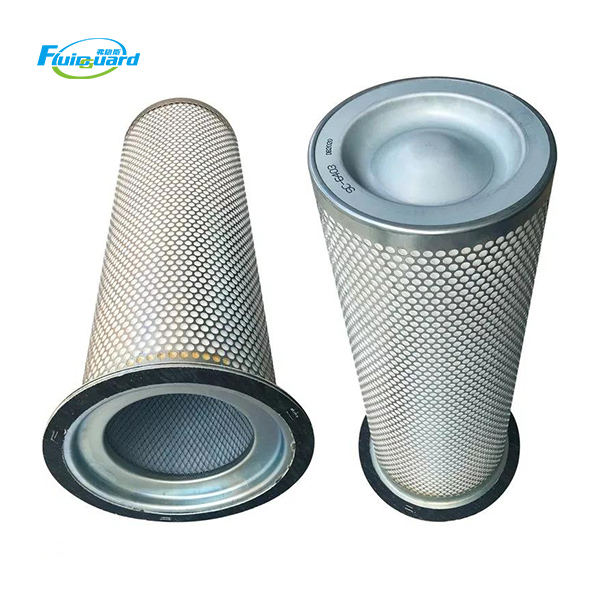

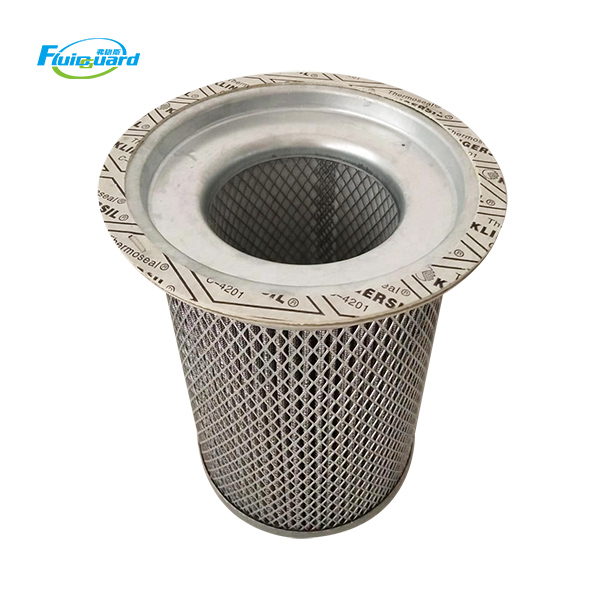

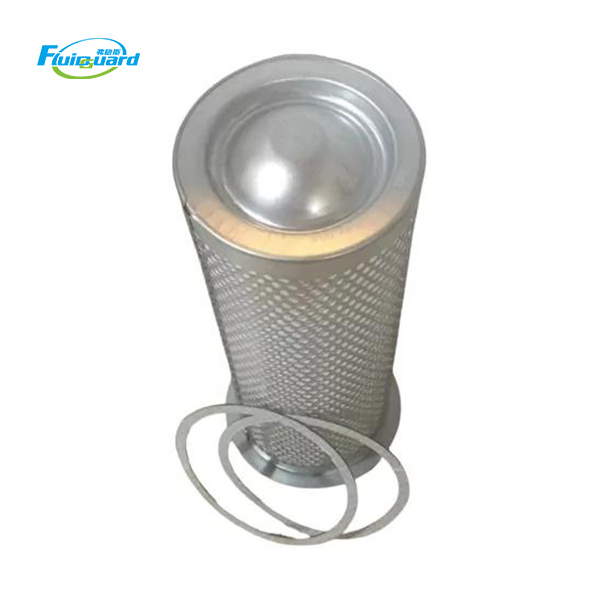

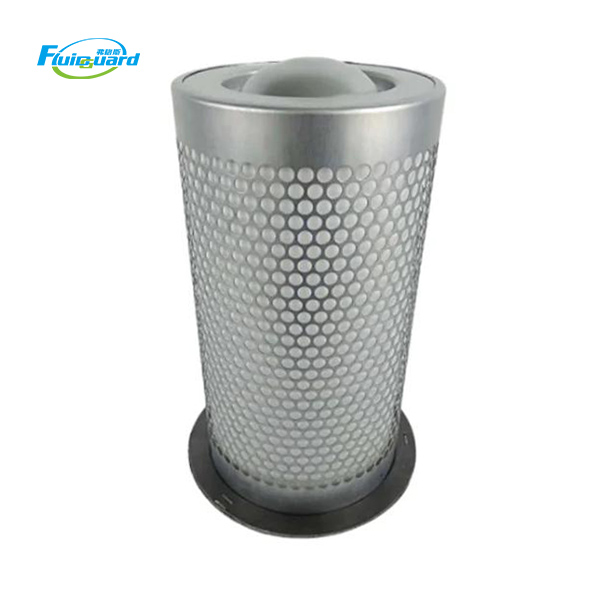

4900050541 Air-Oil Separator Filter Element

Model : 4900050541

Cross Reference:91101200,DB2147

Type : Oil Separators Filters

Replacement for : MANN

Service life : 3500-5200h

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Through filtration and separation, 4900050541 air-oil separator filter element can significantly reduce the oil content in the compressed air.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

During the operation of the air compressor, compressed air containing oil mist is generated. 4900050541 air-oil separator filter element separates these oil mist from the air through a variety of filtration mechanisms, such as interception, diffusion and polymerization. Large oil droplets are easily separated by gravity, while small oil droplets (less than 1 micron in diameter) need to be filtered through the micron glass fiber filter material of the air-oil separator filter element.

Through filtration and separation, 4900050541 air-oil separator filter element can significantly reduce the oil content in the compressed air, thereby improving the quality of the compressed air. This is particularly important for applications that require high-quality compressed air, such as food processing, medical, electronics manufacturing, and other fields.
