Oil Separators Filters

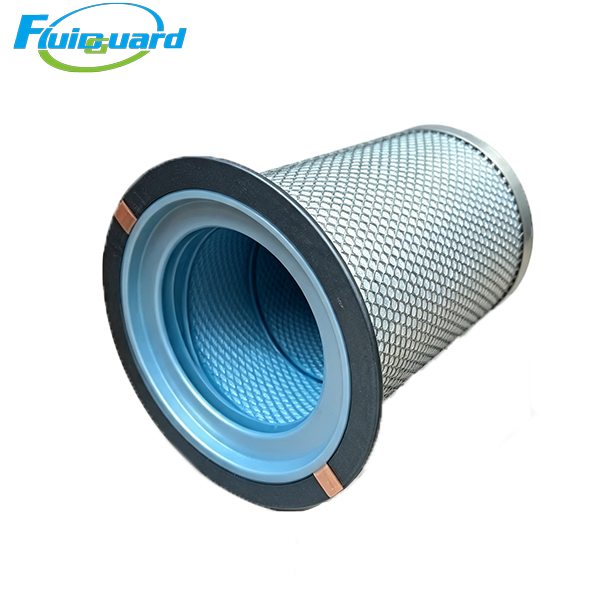

Part No: 2116010159

Residual Oil Content: ≤3ppm under nominal working condition

Max Working Pressure: 16 bar

Working Temperature: ‑20℃ ~ +120℃

Service Life: 3000‑4000 working hours, subject to actual operating condition

Main Features

High‑grade glass‑fiber coalescing filter media, excellent oil mist capturing performance, low residual oil content of compressed air.

Optimized pleated structure, large dust‑holding capacity, stable pressure‑drop throughout the whole service cycle.

High‑temperature resistant composite rubber gasket, reliable compression sealing, effectively prevent oil‑gas bypass leakage.

Perforated outer protective cover and anti‑corrosion central support tube, resist pressure fluctuation and unit vibration.

Application Industry

Widely used in machinery manufacturing, electronics, food, pharmaceutical, packaging and other industrial compressed‑air stations.

Brief Summary

It separates lubricating oil mist from compressed air, reduces oil carry‑over, guarantees outlet compressed‑air quality, protects downstream pneumatic equipment, ensures stable and safe compressor running.
