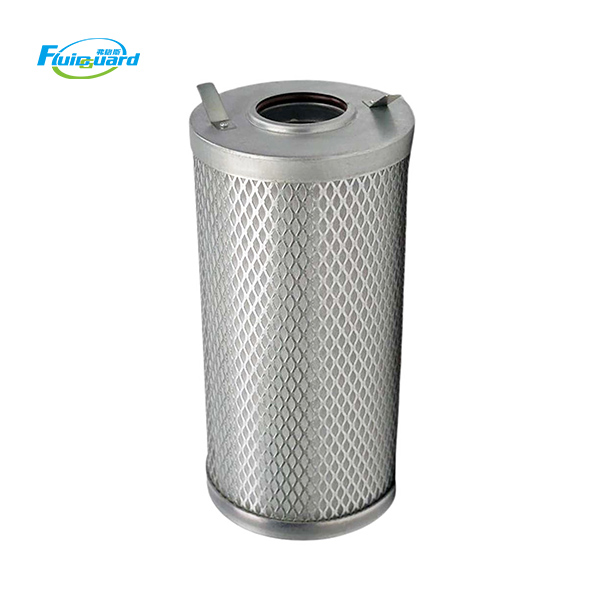

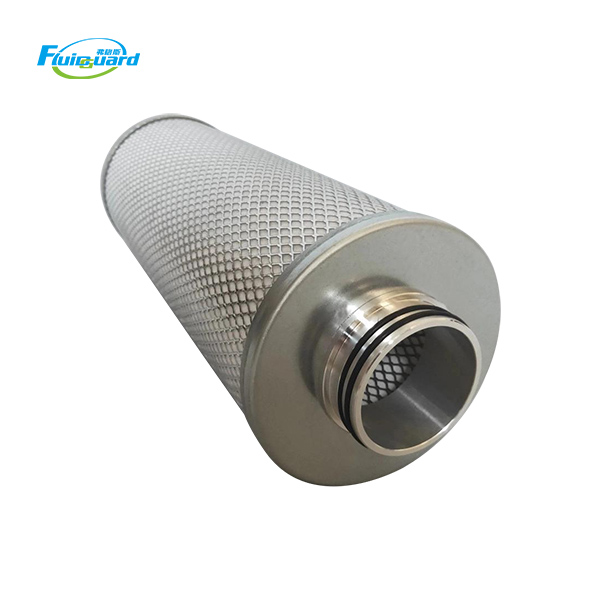

146914 Compressor Part Air Oil Separator

Model : 146914

Type : Oil Separators Filters

Replacement for : Quincy

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Filtration accuracy : 0.1μm

Service life : 3500-5200h

146914 compressor part air oil separator's role is to effectively separate oil droplets from the air stream.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

As air gets compressed, it mixes with oil droplets that are used for cooling and lubrication within the compressor. 146914 compressor part air oil separator's role is to effectively separate these oil droplets from the air stream. Clean, oil-free air flows downstream to ensure that downstream equipment operate efficiently without contamination or damage.

Characteristics and Features:

- Pressure Differential: The separator is designed to handle high-pressure differentials while maintaining its structural integrity. This characteristic is crucial for continuous and reliable operation in high-pressure environments.

- Efficient Oil Return: After separation, the oil is collected at the bottom of the separator and returned to the compressor's oil sump, ensuring efficient use and recycling of the lubricant.
