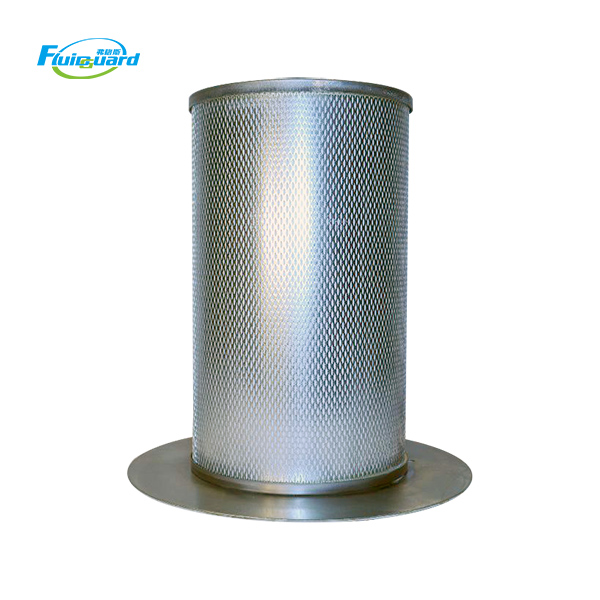

122117005 Flanged Air Oil Separator Element

Model : 122117005

Type : Oil Separators Filters

Replacement for : Quincy

Residual oil content : ≤3 ppm

Initial pressure difference : ≤0.02 Mpa

Filtration efficiency : 99.9%

Filtration accuracy : 0.1μm

Service life : 3500-5200h

122117005 flanged air oil separator element removes the oil mist and particles from the compressed air.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

122117005 flanged air oil separator element is intended to separate oil and air in the compressed air stream. As the air compressor operates, it compresses air, which becomes contaminated with oil from the lubrication system. The air oil separator element removes the oil mist and particles from the compressed air, ensuring that the air supplied to the end-user is clean and free from oil contamination.

122117005 flanged air oil separator element features a sturdy flanged design, which ensures easy installation and a secure fit within the compressor system. The robust construction also provides excellent resistance to pressure and mechanical stress. It is designed to achieve a high level of separation efficiency, typically exceeding 99.9%. This ensures that even the smallest oil particles are captured, resulting in clean and high-quality compressed air.
