Oil Separators Filters

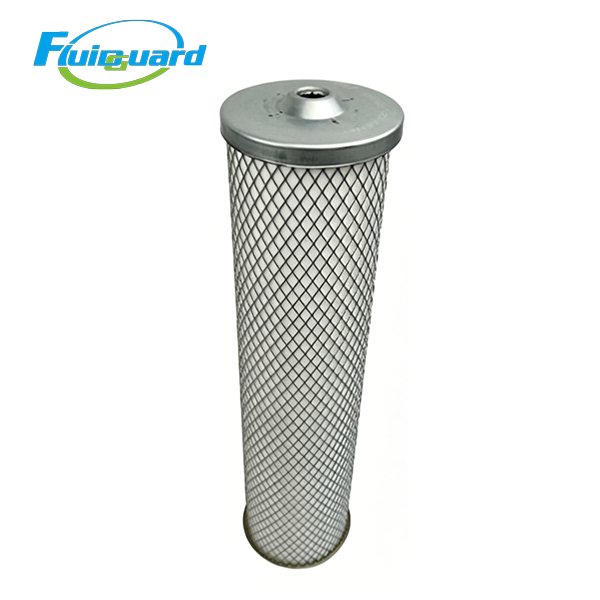

PN: 03340028

Type: Cartridge built-in coalescing separator

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 2.9 kg

Dimensions

Body OD: 162 mm

Internal Core ID: 105 mm

Total Height: 325 mm

Product Features

Multi-layer composite HV glass fiber media, high dust & oil mist holding capacity, stable separation efficiency for long-term operation

Optimized low-resistance folding structure maintains ultra-low initial pressure drop, effectively reducing compressor power consumption and operation cost

Full-perforated anti-static steel inner & outer support cages, anti-corrosion, anti-explosion, prevents filter element collapse under pressure difference

Double green Viton O-ring top sealing, high temperature & oil resistant, completely avoid oil bypass leakage

Product Description

It fully coalesces and intercepts ultrafine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, mining precision equipment and post-processing dryers, cuts down compressor lubricating oil consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the whole air compressor system.
