Model : 4930254101
Type : Compressor Belts
Replacement for : 4930254101
It efficiently coalesces and separates lubricating oil mist mixed into compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines and equipment, reduces compressor lubricant consumption, maintains stable clean co
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.

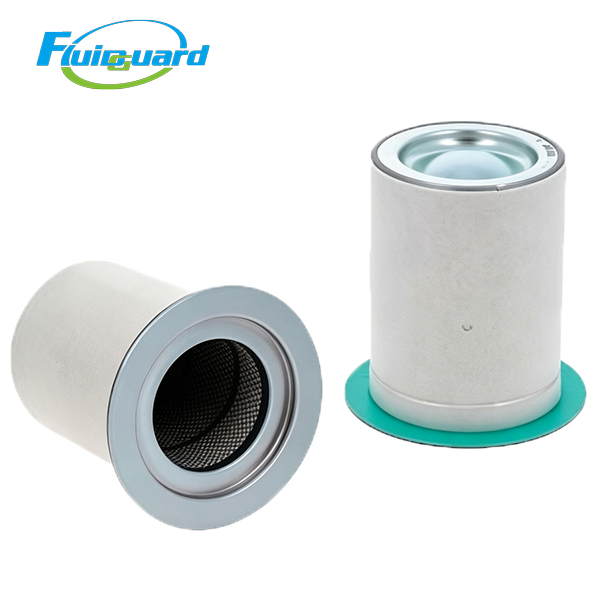

PN: 4930254101
Type: Built-in Flange Coalescing Separator
Media: Imported HV Borosilicate Micro Glass Fiber
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 working hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Net Weight: ~3.3 kg
Dimensions
OD: 176 mm
ID: 118 mm
Height: 255 mm
Product Features
Multi-layer composite glass fiber media fully traps tiny suspended oil mist particles
Optimized low-resistance structure keeps low initial pressure drop to cut compressor power consumption
Rigid anti-static perforated steel support cage, anti-corrosion and explosion-proof
High-temperature Viton rubber flange gasket for stable long-term leak-free sealing
Product Description
It efficiently coalesces and separates lubricating oil mist mixed into compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines and equipment, reduces compressor lubricant consumption, maintains stable clean compressed air supply, and extends the overall service life of the whole air compressor system.
