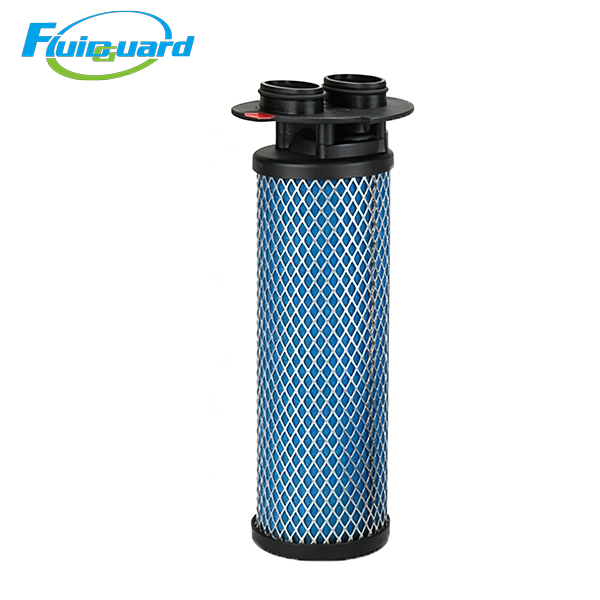

Coalescing Filters

Model: 1C486101

Core Technical Specifications

Filtration Precision: Captures ≥0.01μm submicron liquid oil mist, water aerosol and ultra-fine solid particles

Outlet Residual Oil Content: ≤0.02 ppm

Filter Media: Proprietary UltraPleat multi-layer hydrophobic borosilicate glass fiber composite, outer anti-re-entrainment foam sleeve, oleophobic & anti-static coating, silicon-free option available

Exact Dimensions

Outer Diameter: 49 mm

Total Length: 84 mm

Key Product Advantages

Optimized UltraPleat deep-pleated media for large effective filtration area

Gradient folded glass fiber enlarges contaminant holding volume, forms smooth internal airflow channels and maintains stable low pressure drop under 24/7 full-load continuous operation, reducing long-term energy costs of air compressors.

Large liquid & dust holding capacity extends maintenance intervals

Thick multi-gradient hydrophobic fiber matrix stores massive condensed oil and water, resisting rapid saturation under medium-humidity workshop environments and lowering frequent replacement labor & material costs.

Hydrolysis-proof all-metal reinforced construction eliminates secondary pipeline contamination

Oil-repellent borosilicate glass fiber paired with stainless steel support mesh avoids fiber shedding, preventing oil-dust contamination to downstream pneumatic valves, lab equipment and general electronic assembly devices. Silicon-free version satisfies strict coating production requirements with zero silicone pollution risk.

Working Principle

Pre-cleaned compressed air from particulate pre-filter flows outside-in through multi-layer UltraPleat hydrophobic borosilicate glass fiber media. Tiny oil and water aerosols collide and aggregate into large liquid droplets; the outer hydrophobic foam sleeve stops droplets from being re-carried into airflow, all condensed liquid flows down to the filter bowl drain port by gravity. Dry, low-oil compressed air is delivered to the subsequent activated carbon filter for terminal odor removal.

Application Industr

widely applied in:

General precision machining pneumatic control, small laser cutting equipment, electronic bench assembly, laboratory general analytical instruments, small-scale food packaging, ordinary automotive repair spray booths, small centralized workshop compressed air stations, dryer pre-protection filtration.
