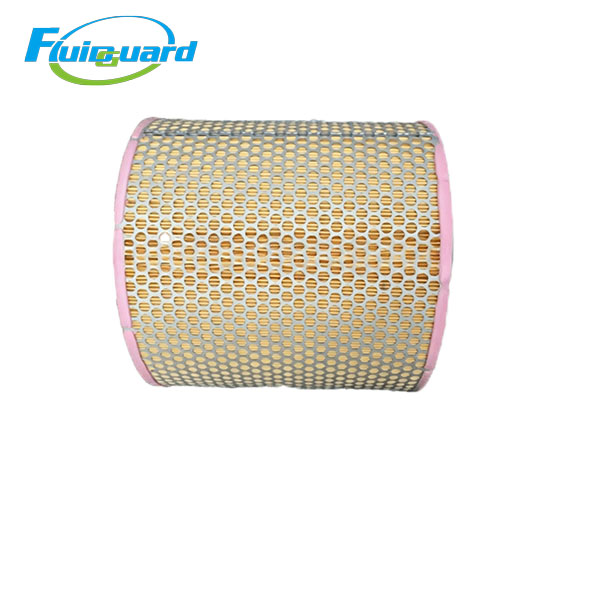

ZS1096065 Air Filter

Model : ZS1096065

Type : Air Filters

Replacement for : ZS1096065

Height : 320 mm

ZS1096065 is an original OEM air filter element for Gardner Denver / CompAir screw compressors. It uses high‑efficiency filter paper with a pleated cartridge structure, offering high dust‑holding capacity, low restriction, and stable performance in heavy‑duty environments. The heavy‑duty sealing end

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: ZS1096065

Product Name: Air Filter Element

Dimensions

Outer Diameter: 220 mm

Inner Diameter: 120 mm

Height: 320 mm

Weight: ~1.8 kg

Specifications & Features

Filter Media: High‑efficiency cellulose filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥99.9%

Initial Pressure Drop: ≤0.02 MPa

End Cap: Rigid sealing end cap, anti‑aging & leak‑proof

Structure: Pleated cartridge, high dust capacity, anti‑deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours

Quality Standard: ISO 9001 certified, OEM genuine quality

Function

Removes dust, sand, metal particles, and other solid contaminants from intake air.

Protects rotors, bearings, and other precision components from abrasive wear.

Reduces lubricant contamination and extends the service life of oil filters, separators, and oil.

Maintains stable airflow and compressor efficiency.
