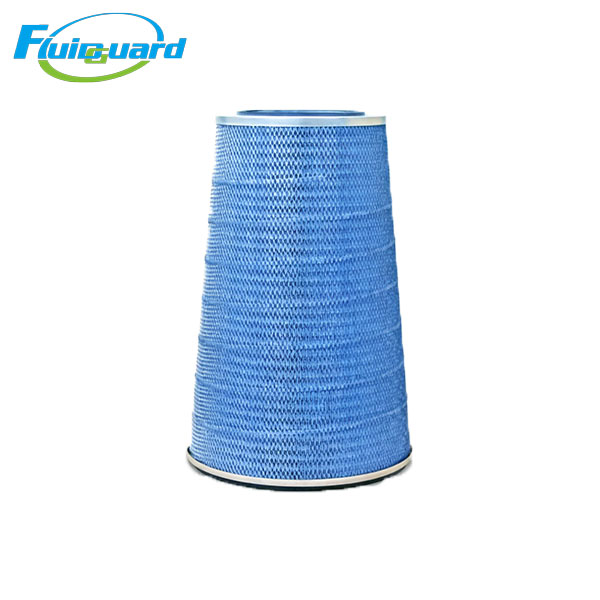

P191281-000-480 Air Filter

Model : P191281-000-480

Type : Air Filters

Replacement for : P191281-000-480

Length : 660.4 mm

Model P191281-000-480, compact structure with precise size. Reliable material ensures stable performance and long service life. Easy to install.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

Model No: P191281-000-480

Product Name: Conical Air Filter Element / Gas Turbine Intake Filter

Alternative No: P191281, P19-1281

Features

Conical design, ER2W5P5 grade

Nano‑fiber / Ultra‑Web media, MERV 15 / EU9 efficiency

High dust holding capacity, low initial pressure drop

Moisture‑resistant barrier, metal end caps & inner liner

Function

Filter fine airborne dust and impurities; protect gas turbine / dust collector components.

Dimensions

Outer Diameter, Top: 444.5 mm

Outer Diameter, Bottom: 323.85 mm

Inner Diameter, Top: 330.2 mm

Inner Diameter, Bottom: 212.85 mm

Length: 660.4 mm

Filter Area: 22 m²

Application

Gas turbine air intake systems

Industrial dust collectors

Heavy‑duty air filtration for high‑flow, high‑efficiency needs
