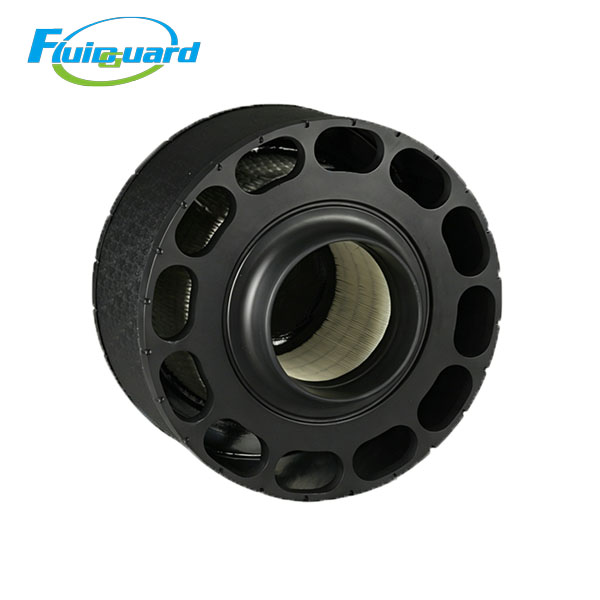

Model : C125003
Type : Air Filters
Replacement for : C125003
It combines a high‑efficiency filter element with a durable ABS housing, capturing dust, sand, and debris while withstanding vibration and pulsation. The compact, all‑in‑one design eliminates the need for a separate housing, reducing installation time and maintenance costs. Ideal for construction, a
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: C125003
Application: Heavy‑duty engines, generators, construction agricultural machinery
Specifications
Filter Media: High‑efficiency pleated cellulose/synthetic blend
Filtration Precision: 5–10 μm
Filter Efficiency: ≥99%
Outlet Diameter: 127 mm
Max Body Diameter: 317.5 mm
Body Length (Height): 152.4 mm
Housing Material: Impact‑resistant ABS plastic
Working Temperature: -20℃ ~ +85℃
Service Life: 2,000–4,000 hours
Net Weight: 2.13 kg
Features
Integrated Design: All‑in‑one disposable air filter, no separate housing needed
Vibration Resistance: Reinforced media & molded ABS housing for severe pulsation conditions
High Dust Capacity: Optimized pleat geometry for heavy dust environments
Low Pressure Drop: Ensures stable airflow & minimal power loss
Tool‑Free Replacement: Lightweight, compact design for quick, easy service
Description
It combines a high‑efficiency filter element with a durable ABS housing, capturing dust, sand, and debris while withstanding vibration and pulsation. The compact, all‑in‑one design eliminates the need for a separate housing, reducing installation time and maintenance costs. Ideal for construction, agriculture, and industrial power generation applications.
