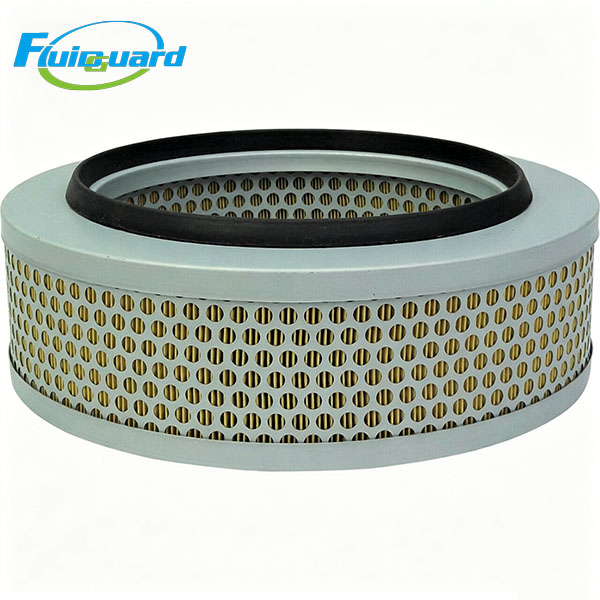

B004700770039 Air Filter

Model : B004700770039

Type : Air Filters

Replacement for : B004700770039

Height : 470 mm

It adopts premium imported cellulose filter media with elaborate pleating design, delivering large dust holding capacity and low initial pressure drop. The double metal mesh structure reinforces the whole body to resist deformation under high airflow. Integrated high-elastic PU end caps achieve full

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: B004700770039

Product Name: Air Filter Element

Dimensions

Outer Diameter: 230 mm

Inner Diameter: 140 mm

Height: 470 mm

Weight: 2.2 kg

Specifications & Features

Filter Media: High-efficiency imported cellulose filter paper

Filtration Accuracy: 5 μm

Filtration Efficiency: ≥99.5%

Initial Pressure Drop: ≤0.018 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Double metal mesh support, anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours under normal working conditions

Quality Standard: ISO 9001 certified production

Function

It filters out dust, sand particles, moisture and fine oil mist from intake air. It protects rotors, bearings and other precision components from abrasive wear. It slows down lubricant deterioration and prolongs the service life of oil filters, oil separators and lubricants. Stable airflow and pressure are maintained to ensure the compressor runs continuously and efficiently.
