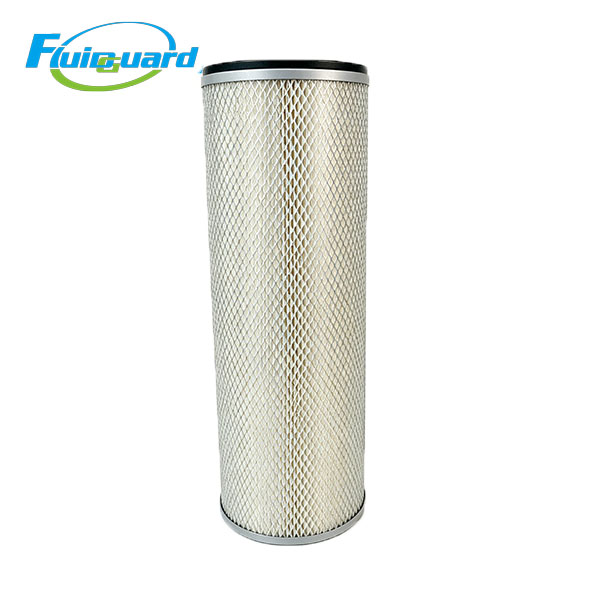

35123520 Air Filter

Model : 35123520

Type : Air Filters

Replacement for : 35123520

Height : 490 mm

It adopts high-capacity cellulose filter paper with radial pleated structure, featuring large dust holding capacity, low airflow resistance and stable filtration performance. The premium sealing end cap provides excellent airtight effect to prevent unfiltered air from entering the equipment. It work

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 35123520

Product Name: Air Filter Element

Dimensions

Outer Diameter: 265 mm

Inner Diameter: 160 mm

Height: 490 mm

Weight: 2.2 kg

Specifications & Features

Filter Media: High-efficiency cellulose filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥99.5%

Initial Pressure Drop: ≤0.02 MPa

End Cap: Anti-aging rubber seal, leak-proof

Structure: Radial pleat, anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours under normal working conditions

Quality Standard: ISO 9001 certified

Function

Filters out dust, sand and solid impurities from intake air.

Protects compressor rotors, bearings and other precision components against abrasion.

Reduces lubricant contamination and prolongs the service life of oil filters and separators.

Maintains stable airflow and normal operating efficiency of the compressor.
