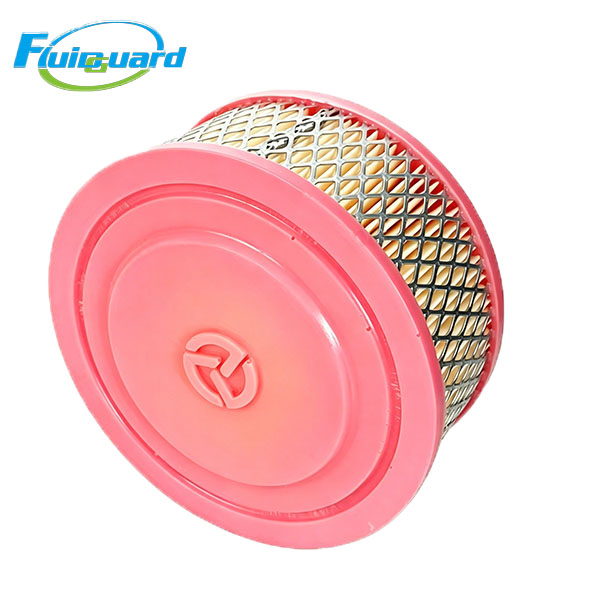

2205722524 Air Filter

Model : 2205722524

Type : Air Filters

Replacement for : 2205722524

Height : 320 mm

2205722524 is a high‑efficiency intake air filter designed for industrial screw compressors. It uses high‑grade pleated cellulose media with a large dust‑holding capacity and low airflow resistance. The heavy‑duty metal end caps with anti‑aging rubber seal provide excellent sealing, preventing unfil

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 2205722524

Product Name: Air Filter Element

Specifications

Filter Media: High‑efficiency cellulose filter paper

Filtration Accuracy: ≤10 μm

Filtration Efficiency: ≥99.8%

Outer Diameter: 165 mm

Inner Diameter: 95 mm

Height: 320 mm

End Cap: Metal + rubber seal

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours

Function

Removes dust, sand, and solid particles from intake air; protects rotors, bearings, and internal parts from wear; reduces oil contamination; maintains stable airflow and energy efficiency.

Key Features

High filtration efficiency, low pressure drop, energy saving

Large dust capacity, longer service intervals

Sturdy metal construction, vibration‑resistant
