Model : 2118859
Type : Air Filters
Replacement for : 2118859
Height : 177.8 mm
It uses pleated cellulose media to capture airborne dust and contaminants, protecting the airend and internal components from premature wear. The heavy-duty metal end caps and robust construction ensure durability in industrial environments.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: 2118859

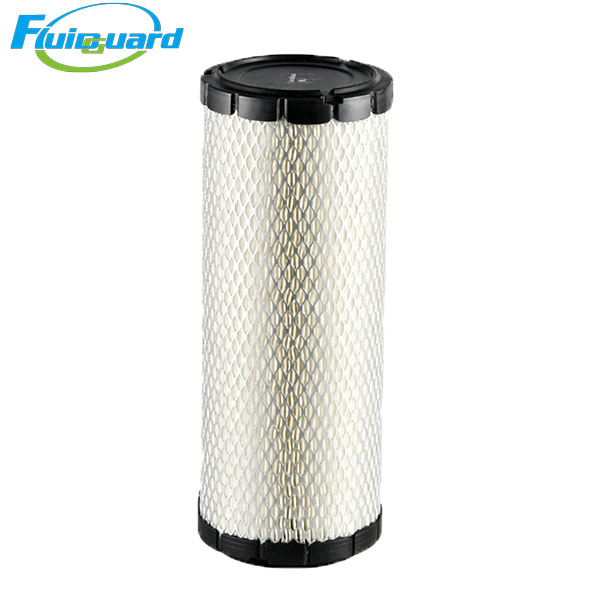

Product Name: Intake Air Filter Element
Description
It uses pleated cellulose media to capture airborne dust and contaminants, protecting the airend and internal components from premature wear. The heavy-duty metal end caps and robust construction ensure durability in industrial environments.
Specifications
Filter Type: Primary Intake Air Filter, Radial Flow
Media: Pleated High-Efficiency Cellulose
Filtration Efficiency: ≥ 99% (per ISO 5011)
Outer Diameter: 88.9 mm
Inner Diameter: 44.5 mm
Height: 177.8 mm
Weight:0.32 kg
Sealing: Rubber Gasket / Metal End Caps
Operating Temperature: -40°C to +85°C
Max. Flow: ~ 50–80 CFM
Function
Engine/Airend Protection: Blocks dust, dirt, and debris from entering compressors/blowers
High Dust Holding Capacity: Extended service life under normal conditions
Consistent Airflow: Maintains optimal suction flow and efficiency
Easy Maintenance: Direct drop-in replacement for original GD filters
