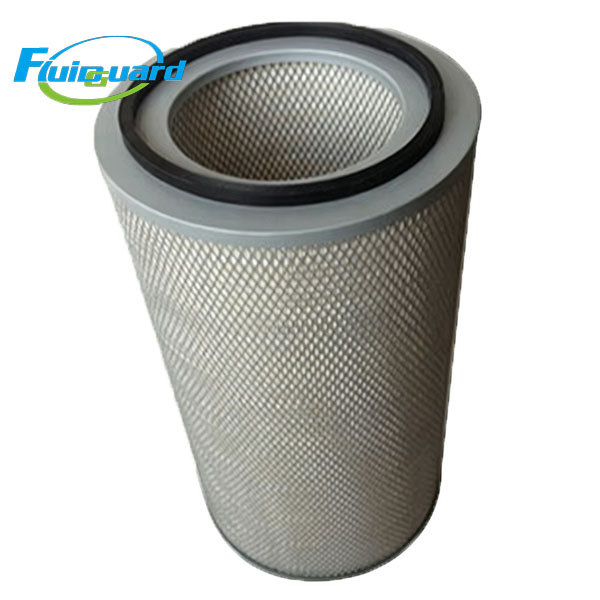

1627410038 Air Filter

Model : 1627410038

Type : Air Filters

Replacement for : 1627410038

Height : 230 mm

Made of high-quality imported wood pulp filter paper, it features a compact honeycomb pleated structure with outstanding dust holding capacity and low airflow resistance. The one-piece PU end cap ensures tight sealing, good leak-proof performance and long anti-aging life. It fully protects the compr

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 1627410038

Product Name: Air Filter Element

Dimensions

Outer Diameter: 210 mm

Inner Diameter: 206 mm

Height: 230 mm

Weight: 1.4 kg

Specifications & Features

Filter Media: Imported HV / Ahlstrom wood pulp filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥98%

Initial Pressure Drop: ≤0.02 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Honeycomb pleat, sturdy and anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours under normal working conditions

Quality Standard: ISO 9001 certified production

Function

It effectively filters out dust, sand, metal scraps and other impurities in intake air. It prevents abrasion and damage to rotors, bearings and other key components. It reduces lubricant contamination and prolongs the service life of oil filters, oil separators and lubricating oil. It keeps stable airflow to maintain the compressor’s normal working efficiency.
