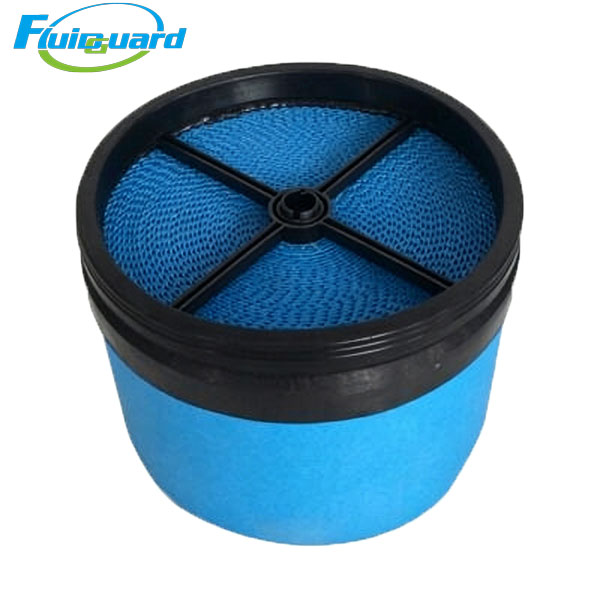

1627410029 Air Filter

Model : 1627410029

Type : Air Filters

Replacement for : 1627410029

Height : 205 mm

It adopts imported wood pulp filter paper with honeycomb structure, featuring large dust holding capacity, low airflow resistance and long service life. The integrated PU end cap provides reliable sealing with excellent leak-proof and anti-aging performance. It is perfectly compatible with Quincy QG

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 1627410029

Product Name: Honeycomb Air Filter Element

Dimensions

Outer Diameter: 185 mm

Inner Diameter: 181 mm

Height: 205 mm

Weight: 1.2 kg

Specifications & Features

Filter Media: Imported HV / Ahlstrom wood pulp filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥98%

Initial Pressure Drop: ≤0.02 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Honeycomb pleat, high dust capacity and anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–2500 hours under normal working conditions

Quality Standard: ISO 9001 certified production

Function

It removes dust, sand, metal debris and other solid contaminants from intake air. It protects precision components like rotors and bearings from abrasive wear. It slows down lubricant contamination and prolongs the service life of oil filters, oil separators and lubricants. It maintains stable intake airflow to ensure stable working efficiency and qualified outlet air quality.
